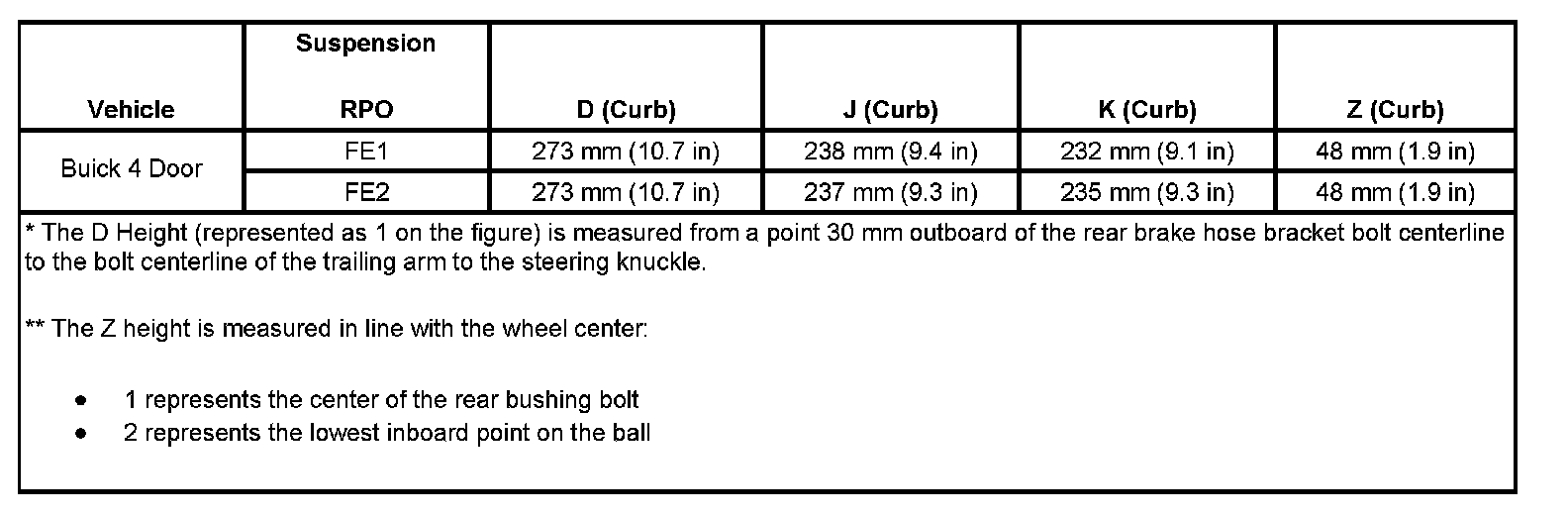

Trim Height Specifications







Trim Height Specifications

Measuring Z Height:





Measuring Z Height

Measuring D Height:





Measuring D Height

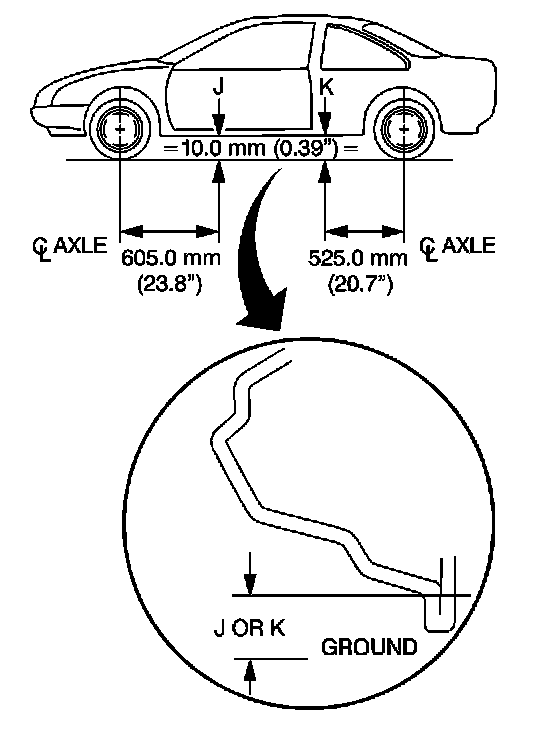

Measuring J or K Height:





Measuring J or K Height
