Mirror Replacement - Power Mirror

Mirror Replacement - Power

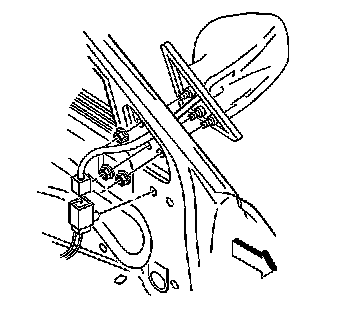

Removal Procedure

1. Remove the front door trim panel. Refer toTrim Panel Replacement - Side Front Door (Service and Repair) .




2. Disconnect the mirror electrical connectors.
3. Remove the mirror reinforcement cover.
4. Remove the mirror nuts.
5. Remove the mirror from the front door.



Installation Procedure





1. Position the mirror to the front door.

Notice: Refer toFastener Notice in Cautions and Notices.

2. Install the mirror nuts.

Tighten the nuts to 10 Nm (89 lb in).

3. Install the mirror reinforcement cover.
4. Connect the mirror electrical connectors.
5. Install the front door trim panel. Refer toTrim Panel Replacement - Side Front Door (Service and Repair) .
