Armrest Replacement - Rear Seat (Folding)

ARMREST REPLACEMENT - REAR SEAT (FOLDING)

REMOVAL PROCEDURE




1. Fold down the rear seat back.

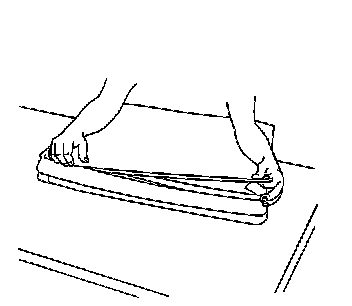

2. Unhook the seat trim J-hook retainers at the bottom of the rear seat back.




3. Pull back the seat trim to expose the rear seat armrest nuts.
4. Remove the nuts from the rear seat armrest.




5. Reposition the rear seat to the upright position.
6. Remove the rear seat armrest from the seat.




7. Remove the armrest pivot screw (1) from the bracket (2).

INSTALLATION PROCEDURE




1. Install the armrest pivot screw.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the screw to 10 N.m (89 lb in).




2. Position the rear seat armrest to the rear seat back retainer slot.




3. Install the rear seat armrest, pressing into place until the armrest studs are fully seated through the seat back.
4. Fold down the rear seat back.




5. Install the rear seat armrest nuts.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the nuts to 3 N.m (27 lb in).




6. Pull back the seat trim and refasten the J-hook retainers.
7. Reposition the rear seat to the upright position.
