Armrest Replacement - Rear Seat (Non-Folding)

ARMREST REPLACEMENT - REAR SEAT (NON-FOLDING)

REMOVAL PROCEDURE
1. Remove the fixed seat back with armrest.

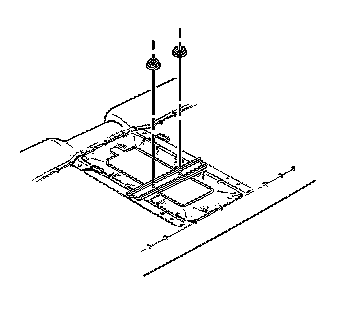

2. Remove the seat back armrest nuts.




3. Remove the seat back armrest from the seat back.

INSTALLATION PROCEDURE




1. Install the seat back armrest to the seat back.




2. Install the seat back armrest nuts.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the seat back armrest nuts to 3 N.m (27 lb in).

3. Install the fixed seat back with armrest.
