Cruise Control Servo Cable: Service and Repair

CRUISE CONTROL CABLE REPLACEMENT

REMOVAL PROCEDURE

IMPORTANT: The cruise control cable does not require mechanical adjusting after the replacement. The cruise control module internally adjusts the cable. Refer to Cruise Control Description and Operation for the complete operational details.




1. Disconnect the cable adjuster lock.

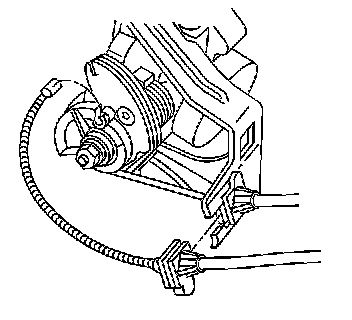

2. Rotate the cruise control cable counterclockwise.Remove the cruise control cable from the cruise control module.




3. Remove the cruise control cable from the cruise control module strap.

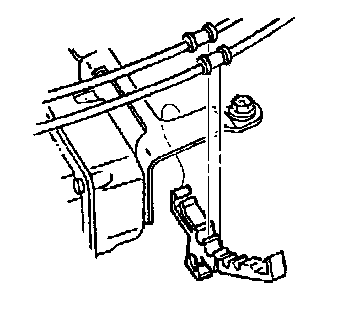

4. Remove the cruise control cable from the cruise control cable retainers.
5. Remove the cruise control cable from the throttle lever and the accelerator control cable bracket.

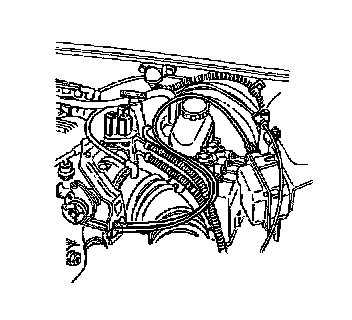

6. Remove the cruise control cable from the engine.

INSTALLATION PROCEDURE
1. Install the cruise control cable to the engine.




2. Install the cruise control cable to the throttle lever and the accelerator control cable bracket.




3. Install the cruise control cable to the cruise control retainers.




4. Install the cruise control cable to the cruise control module strap.




5. Rotate the cruise control cable clockwise.Install the cruise control cable to the cruise control module.

IMPORTANT: Ensure the cruise control module strap is not twisted during installation of the cruise control cable.
