Home >> Buick >> 2005 >> Century V6-3.1L VIN J >> Repair and Diagnosis >> Diagrams >> Connector Views >> C200 - C299 >> C203

C203

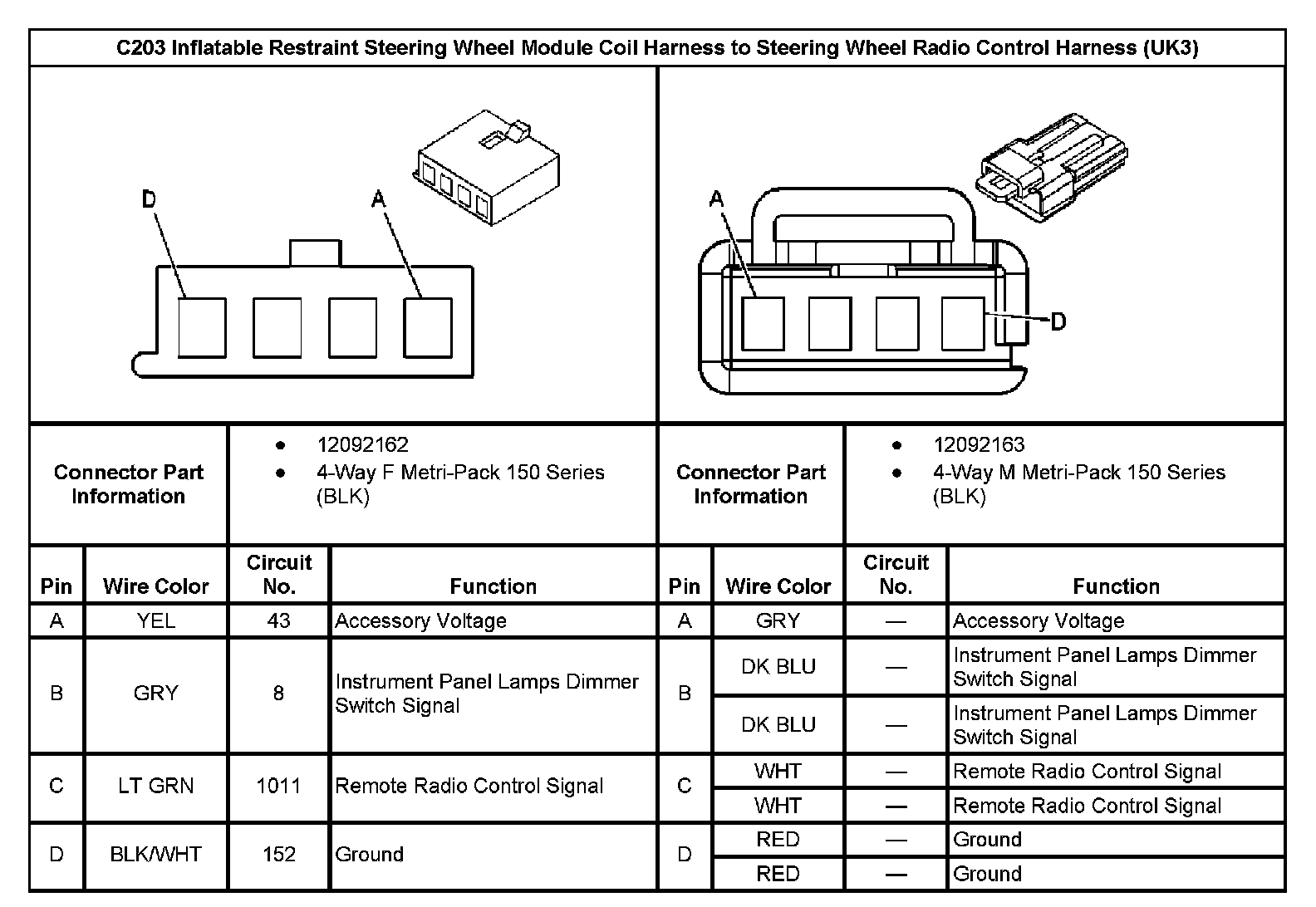

C203 Inflatable Restraint Steering Wheel Module Coil Harness To Steering Wheel Radio Control Harness (With RPO Code UK3):
