Home >> Buick >> 2005 >> Century V6-3.1L VIN J >> Repair and Diagnosis >> Diagrams >> Connector Views >> C300 - C399 >> C311

C311

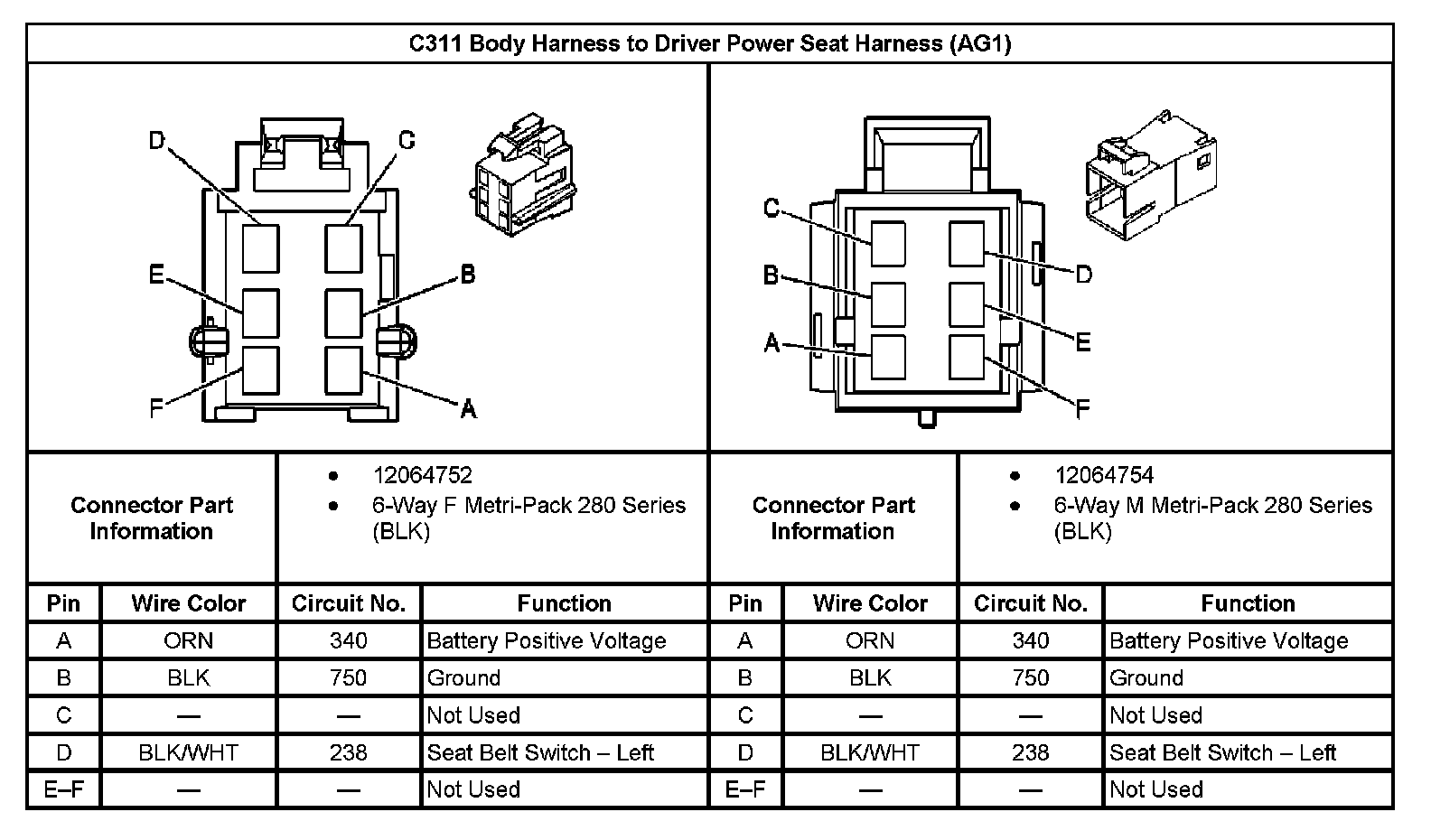

C311 Body Harness To Driver Power Seat Harness (With RPO Code AG1):
