Connector Views
>>
Door Locks
>>
Door Lock - Front Passenger
Door Lock - Front Passenger

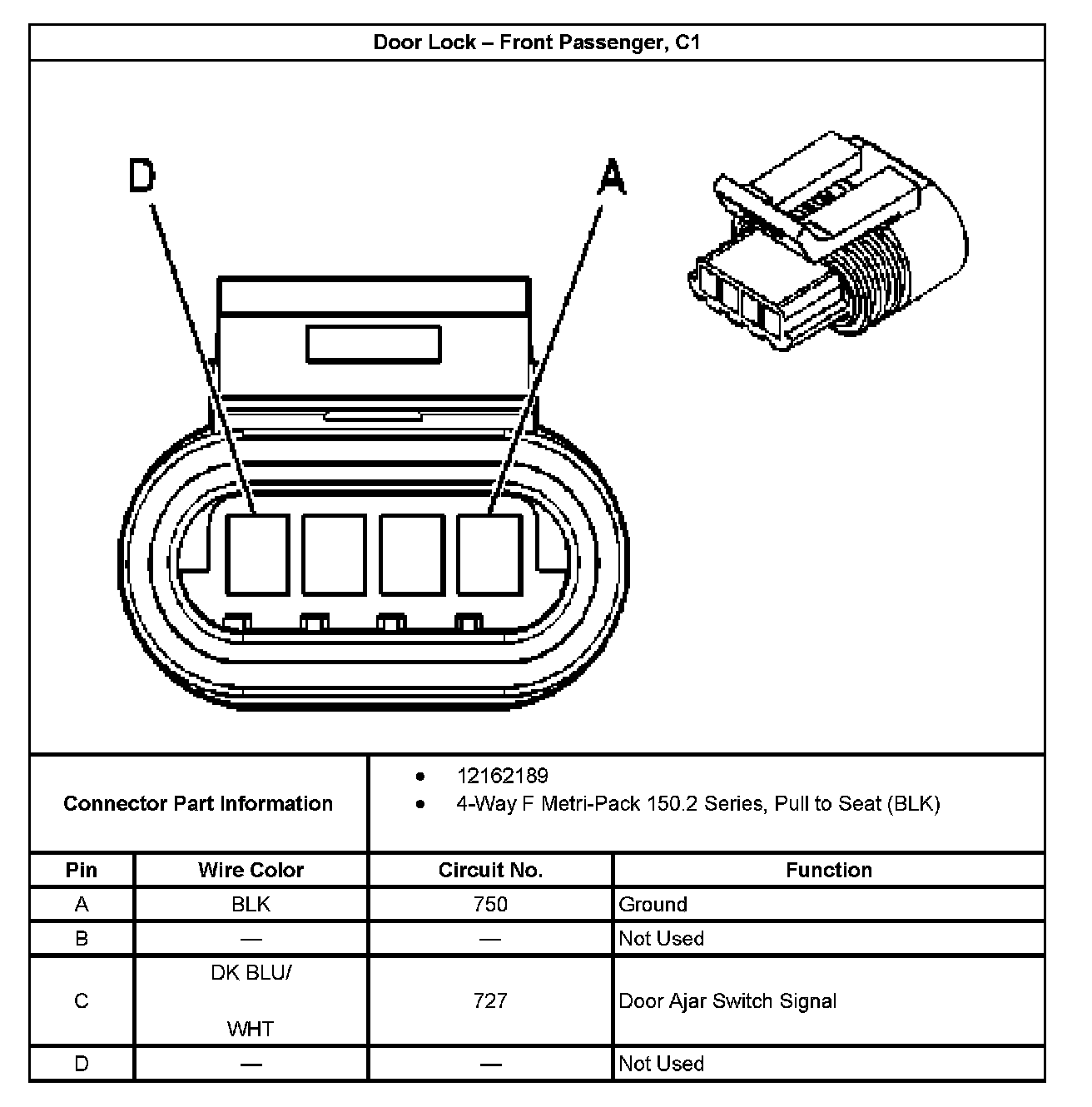

Door Lock - Front Passenger,C1:
Door Lock - Front Passenger, C2:
