Home >> Buick >> 2005 >> Century V6-3.1L VIN J >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Locks >> Door Lock - LR

Door Lock - LR

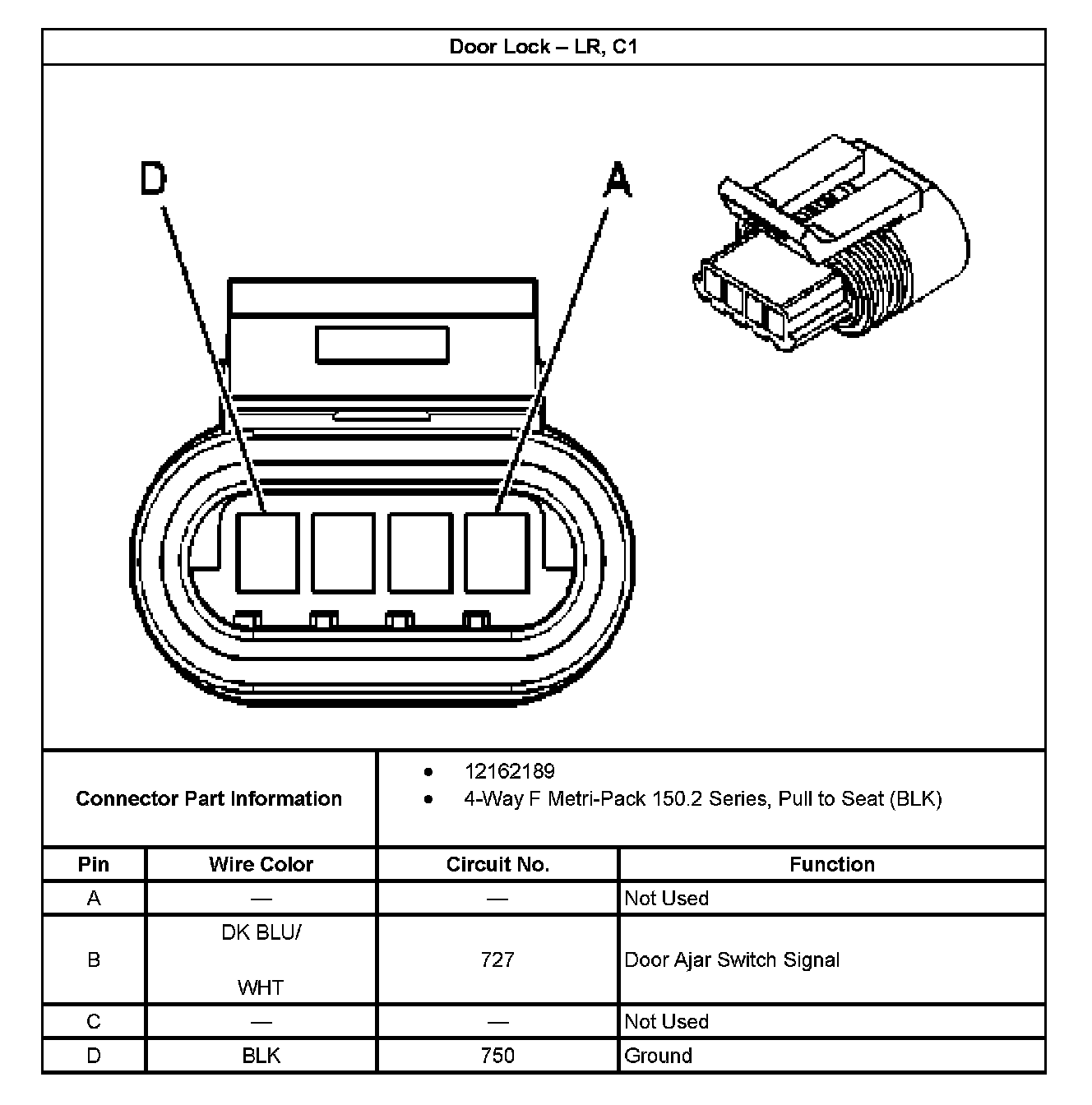

Door Lock - LR, C1:

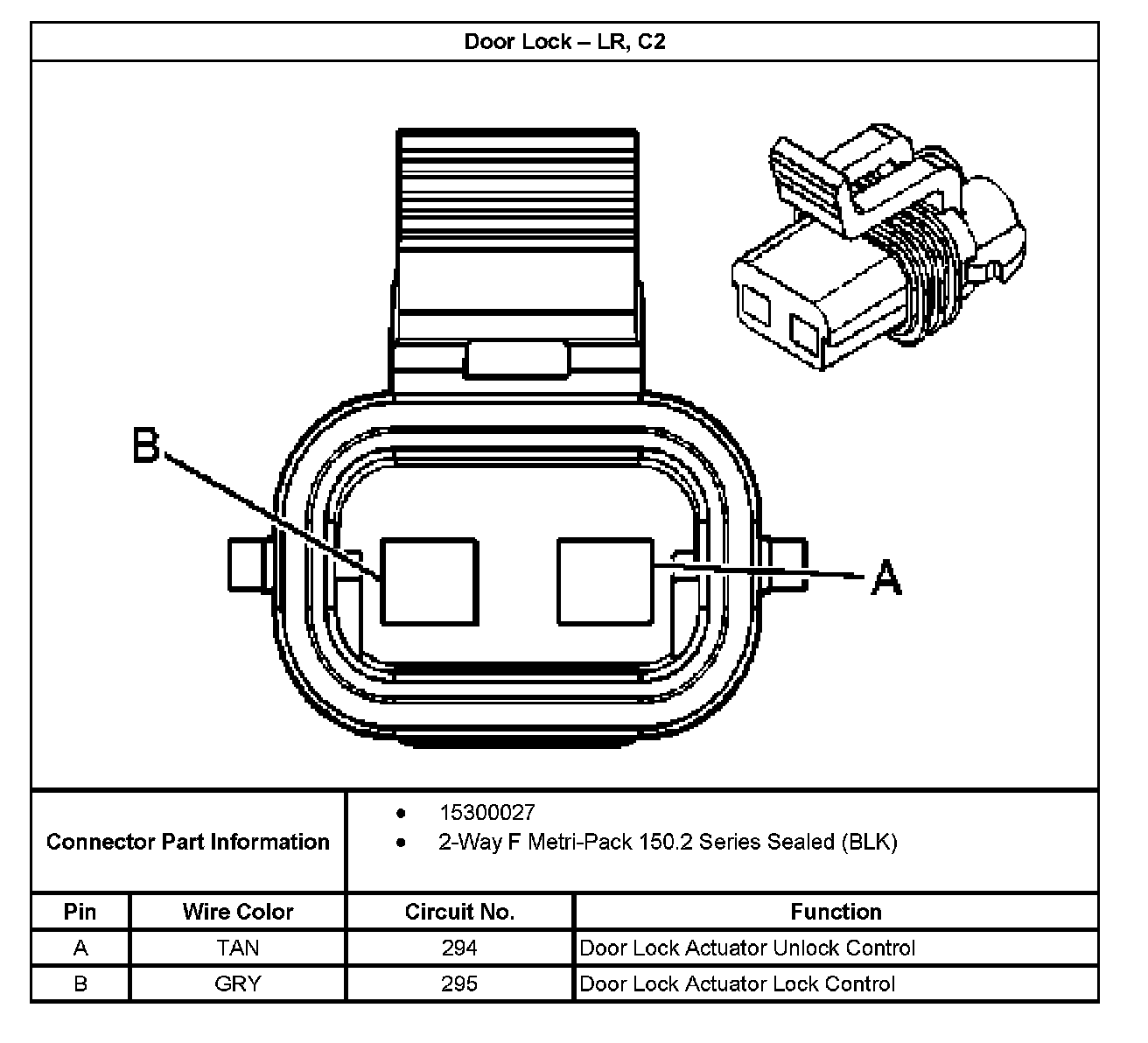

Door Lock - LR, C2:
