Home >> Buick >> 2005 >> Century V6-3.1L VIN J >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Motor

Power Seat Motor

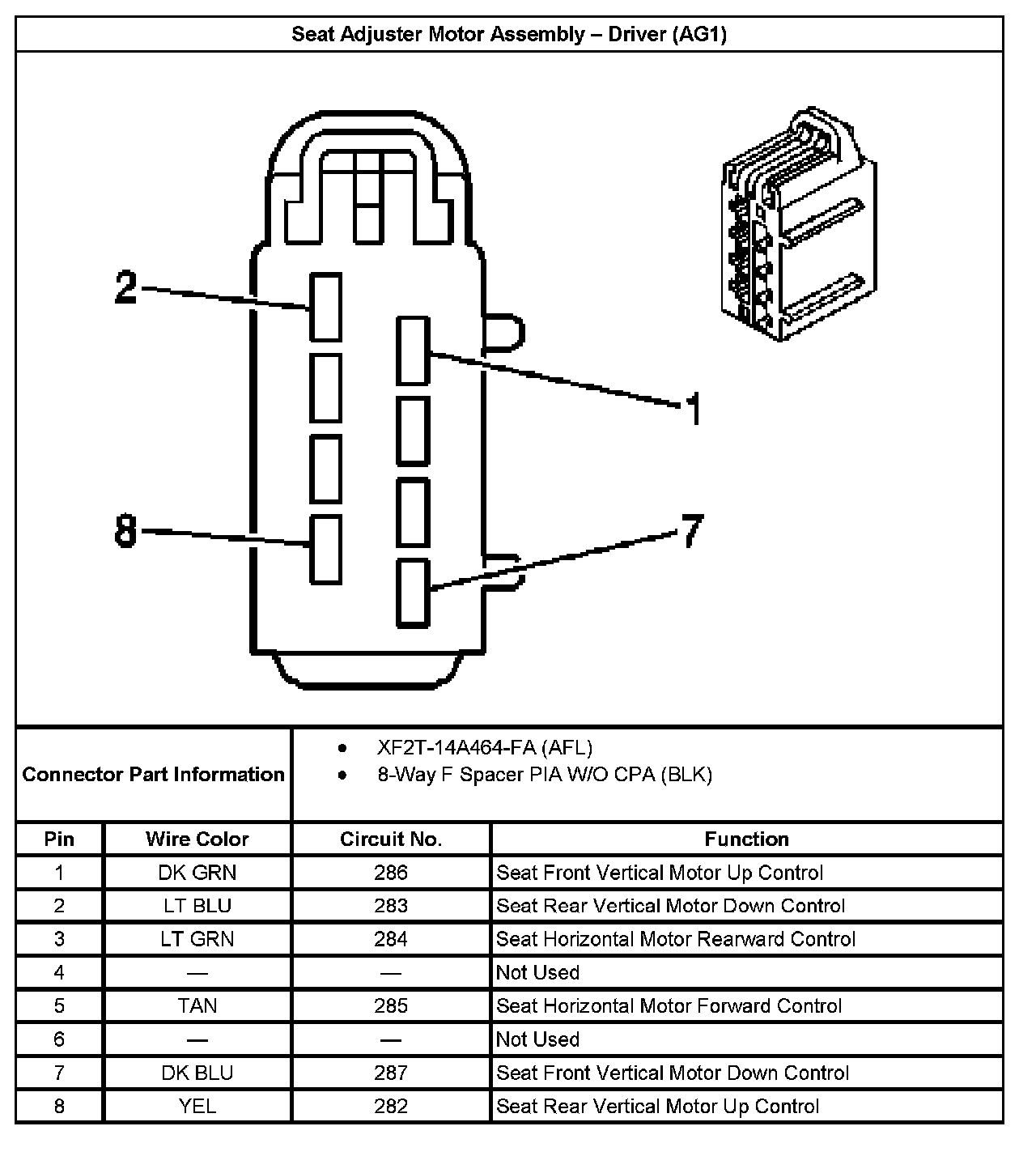

Seat Adjuster Motor Assembly - Driver (With RPO Code AG1):
