Home >> Buick >> 2005 >> Century V6-3.1L VIN J >> Repair and Diagnosis >> Diagrams >> Connector Views >> Speaker >> Speaker - LR

Speaker - LR

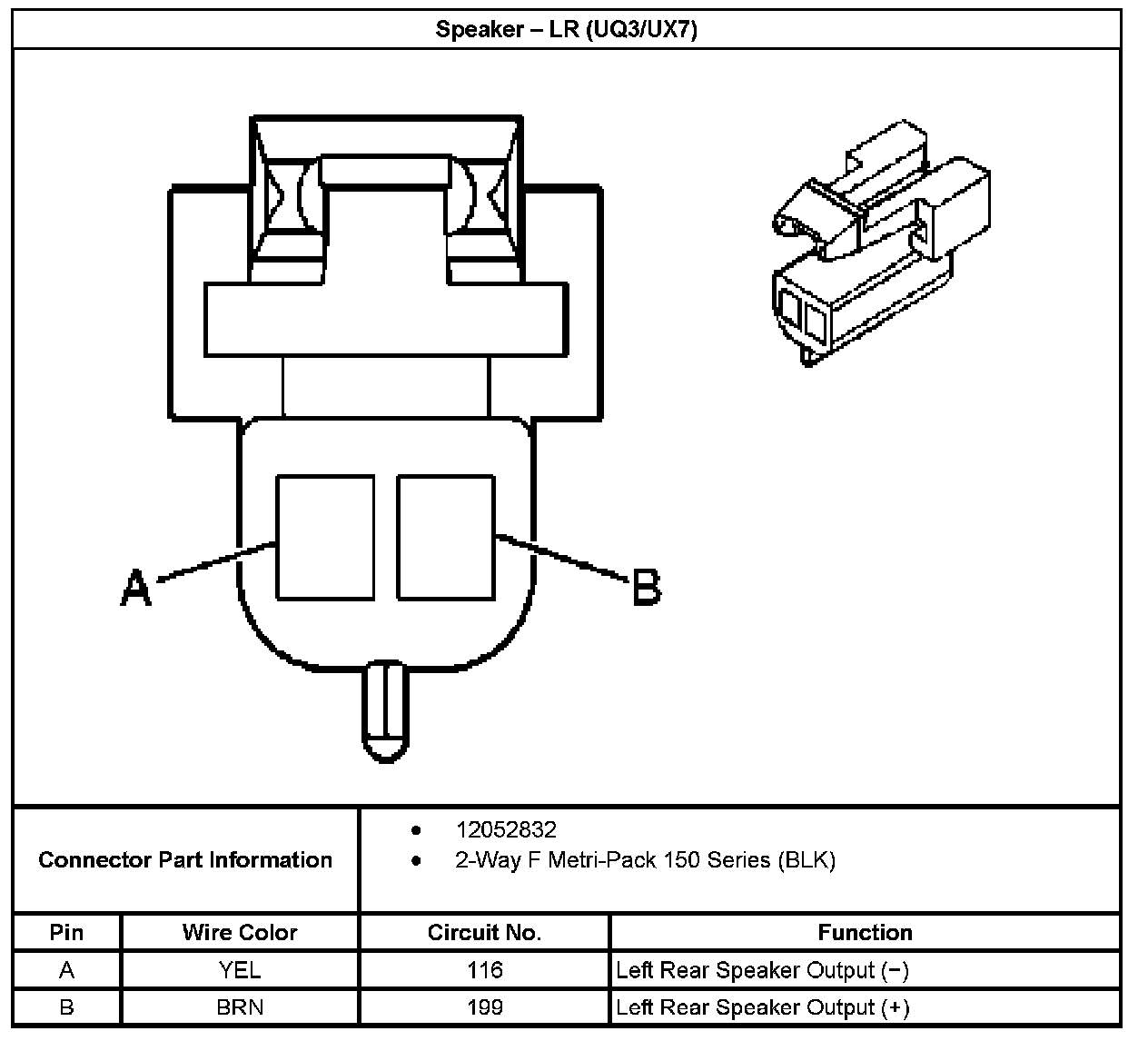

Speaker - LR (With RPO Code UQ3/UX7):
