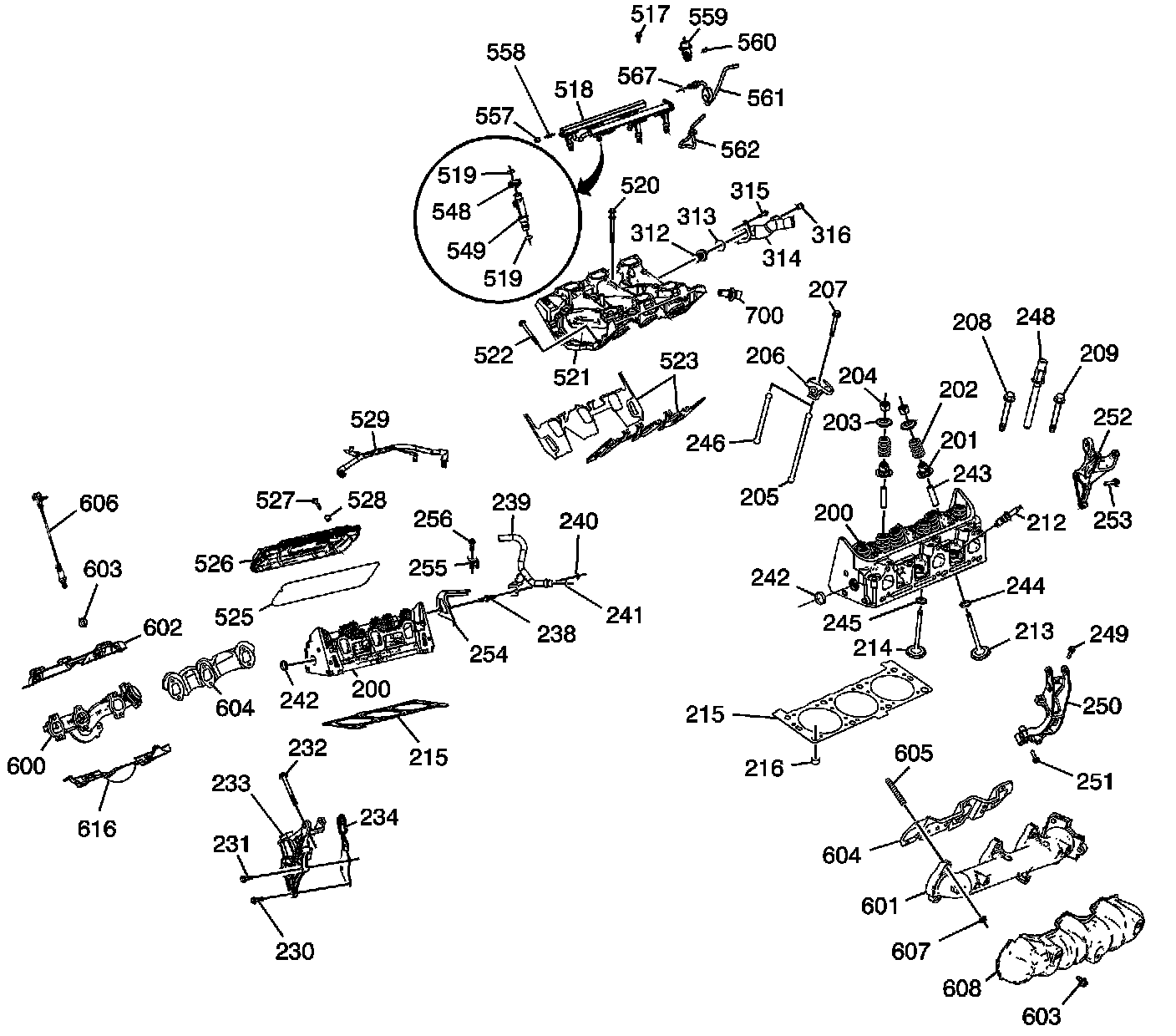

Lower Intake Manifold, Cylinder Head, and Components

Lower Intake Manifold Cyl Head, Components






(200) Cylinder Head
(200) Cylinder Head
(201) Valve Seal
(202) Valve Spring
(203) Valve Spring Cap
(204) Valve Stem Key
(205) Valve Pushrod - Exhaust
(206) Valve Rocker Arm
(207) Valve Rocker Arm Bolt
(208) Cylinder Head Bolt - Medium
(209) Cylinder Head Bolt - Short
(212) Spark Plug
(213) Exhaust Valve
(214) Intake Valve
(215) Cylinder Head Gasket
(215) Cylinder Head Gasket
(216) Cylinder Head Locating Pin
(230) Generator Bracket Bolt - Short
(231) Generator Bracket Bolt - Medium
(232) Generator Bracket Bolt - Long
(233) Generator Bracket
(234) Engine Lift Bracket - Front
(238) Heater Inlet Pipe Stud
(239) Heater Inlet Pipe
(240) Heater Inlet Pipe Nut
(241) Heater Inlet Pipe Seal
(242) Cylinder Head Expansion Plug
(242) Cylinder Head Expansion Plug
(243) Valve Guide
(244) Valve Seat - Exhaust
(245) Valve Seat - Intake
(246) Valve Pushrod - Intake
(248) Cylinder Head Bolt - Long
(249) Engine Mount Strut and A/C Compressor Bracket Bolt - Short
(250) Engine Mount Strut and A/C Compressor Bracket
(251) Engine Mount Strut and A/C Compressor Bracket Bolt - Long
(252) Engine Mount Strut and Engine Lift Bracket
(253) Engine Mount Strut and Engine Lift Bracket Bolt
(254) Fuel Feed and Return Pipe Bracket
(255) Fuel Feed and Return Pipe Clip
(256) Fuel Feed and Return Pipe Clip Bolt
(312) Thermostat
(313) Thermostat Seal
(314) Water Outlet Housing
(315) Water Outlet Housing Bolt
(316) Water Outlet Housing Fitting
(517) Fuel Rail Bolt
(518) Fuel Rail
(519) Fuel Injector Seal
(519) Fuel Injector Seal
(520) Lower Intake Manifold Bolt - Long
(521) Lower Intake Manifold
(522) Lower Intake Manifold Bolt - Short
(523) Lower Intake Manifold Gasket
(525) Valve Rocker Cover Seal
(526) Valve Rocker Cover
(527) Valve Rocker Cover Bolt
(528) Valve Rocker Cover Bolt Grommet
(529) Vacuum Harness
(548) Fuel Injector Retaining Clip
(549) Fuel Injector
(557) Fuel Rail Service Port Cap
(558) Fuel Rail Service Port Schrader Valve
(559) Fuel Pressure Regulator
(560) Fuel Pressure Regulator Bolt
(561) Fuel Feed Pipe
(562) Fuel Return Pipe
(567) Fuel Feed Pipe Seal
(600) Exhaust Manifold - Left
(601) Exhaust Manifold - Right
(602) Exhaust Manifold Heat Shield - Right - Upper
(603) Exhaust Manifold Heat Shield Bolt
(603) Exhaust Manifold Heat Shield Bolt
(604) Exhaust Manifold Gasket
(604) Exhaust Manifold Gasket
(605) Exhaust Manifold Stud
(606) Heated Oxygen Sensor
(607) Exhaust Manifold Nut
(608) Exhaust Manifold Heat Shield - Left
(616) Exhaust Manifold Heat Shield -Right - Lower
(700) Ignition Coil Assembly
