Home >> Buick >> 2005 >> Century V6-3.1L VIN J >> Repair and Diagnosis >> Diagrams >> Harness >> Instrument Panel Views >> Lower Left of the I/P

Lower Left of the I/P

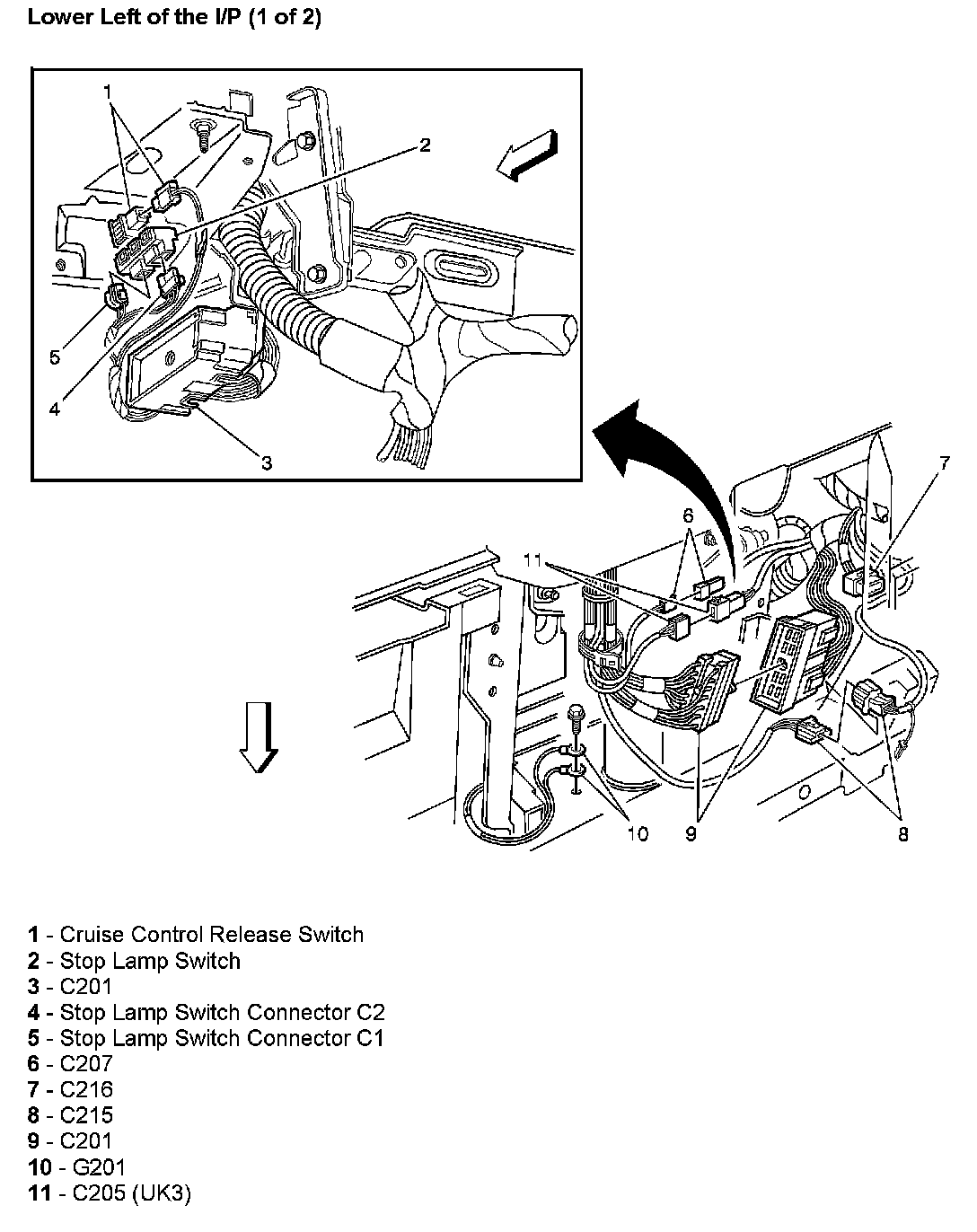

Lower Left Of The I/P (1 Of 2):
