Closeout/Insulator Panel Replacement - Left

Closeout/Insulator Panel Replacement - Left

Tools Required

J 38778 Door Trim Pad Clip Remover


Removal Procedure

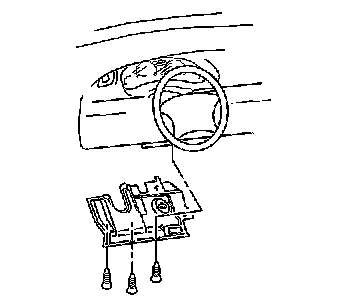

1. UseJ 38778 in order remove the left instrument panel (I/P) insulator retainers from the filler panel on the steering column opening.




2. Disconnect the courtesy lamp from the I/P insulator by turning the lamp 1/4 turn counterclockwise.

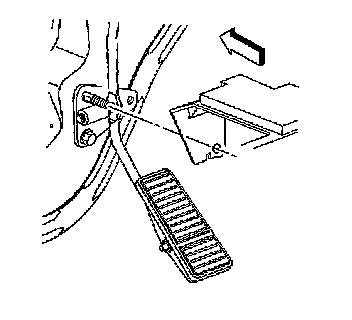

3. Remove the left I/P insulator from the stud at the accelerator pedal.
4. Remove the left I/P insulator.



Installation Procedure

1. Position the left I/P insulator to the I/P.




2. Install the courtesy lamp to the I/P insulator then rotate 1/4 turn clockwise to secure.




3. Install the left I/P insulator to the stud at the accelerator pedal.




4. Install the left I/P insulator retainers to the filler panel on the steering column opening.
