Courtesy Lamp Replacement - Instrument Panel

COURTESY LAMP REPLACEMENT - INSTRUMENT PANEL

REMOVAL PROCEDURE




1. Lower the appropriate instrument panel (I/P) insulator. Refer to Closeout/Insulator Panel Replacement - Right or to Closeout/Insulator Panel Replacement - Left in Instrument Panel, Gages, and Console.

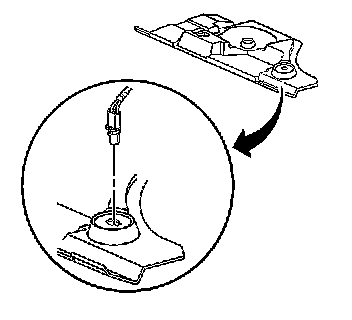

2. Rotate the courtesy lamp socket counterclockwise. Remove the socket from the insulator.
3. Pull the bulb from the socket.

INSTALLATION PROCEDURE




1. Install the bulb to the socket.
2. Install the courtesy lamp socket to the I/P insulator. Rotate the socket clockwise to secure.
3. Install the IP insulator.
