Roof Side Rail Lamp Replacement

ROOF SIDE RAIL LAMP REPLACEMENT

REMOVAL PROCEDURE

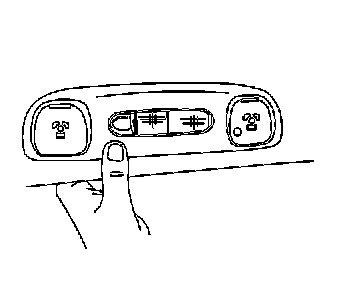

1. Open the assist handle covers.
2. Remove the side rail lamp assist handle screws.




3. Remove the assist handle.




4. Remove the side rail lamp base plate.

IMPORTANT: Note the location of the side rail lamp assist handle plastic retainers.

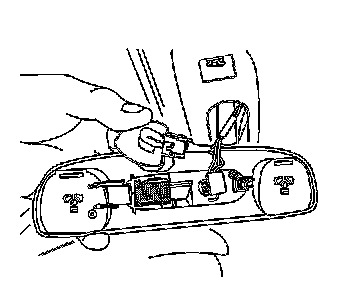

5. Disconnect the electrical connector from the side rail lamp.




6. Remove the side rail lamp socket from the base plate by sliding off.




7. Remove the bulb.

INSTALLATION PROCEDURE




1. Install the bulb.
2. Install the side rail lamp socket to the base plate by sliding on.




3. Connect the electrical connector to the side rail lamp.




4. Align the side rail lamp base plate to the plastic retainers.




5. Position the side rail lamp assist handle to the base plate and the plastic retainers.




6. Install the side rail lamp assist handle screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the side rail lamp assist handle screws to 2 N.m (18 lb in).

7. Close the assist handle covers pressing into place until fully seated.
