Upper Rear of the Engine Components

Upper Rear Of The Engine Components:

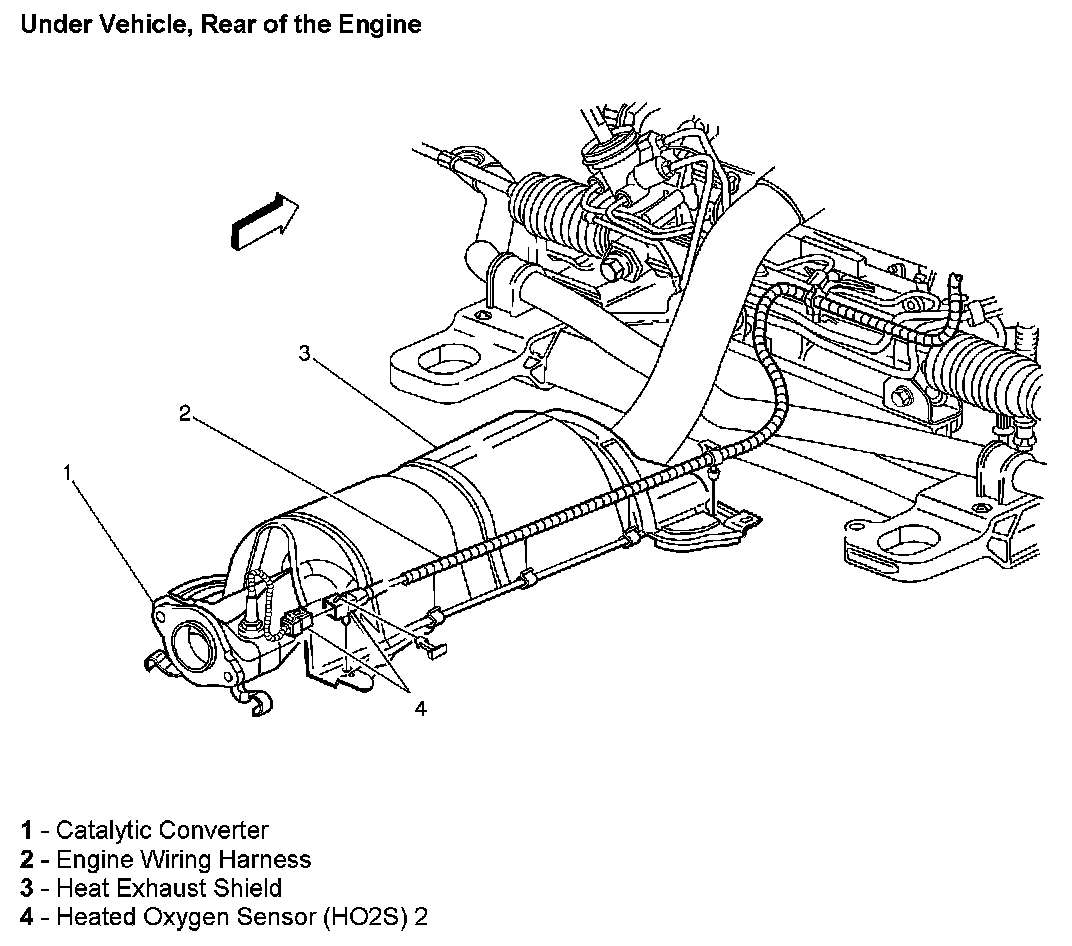

Under Vehicle, Rear Of The Engine:
