Shift Interlock: Locations

Automatic Transmission Shift Lock Control Component Views

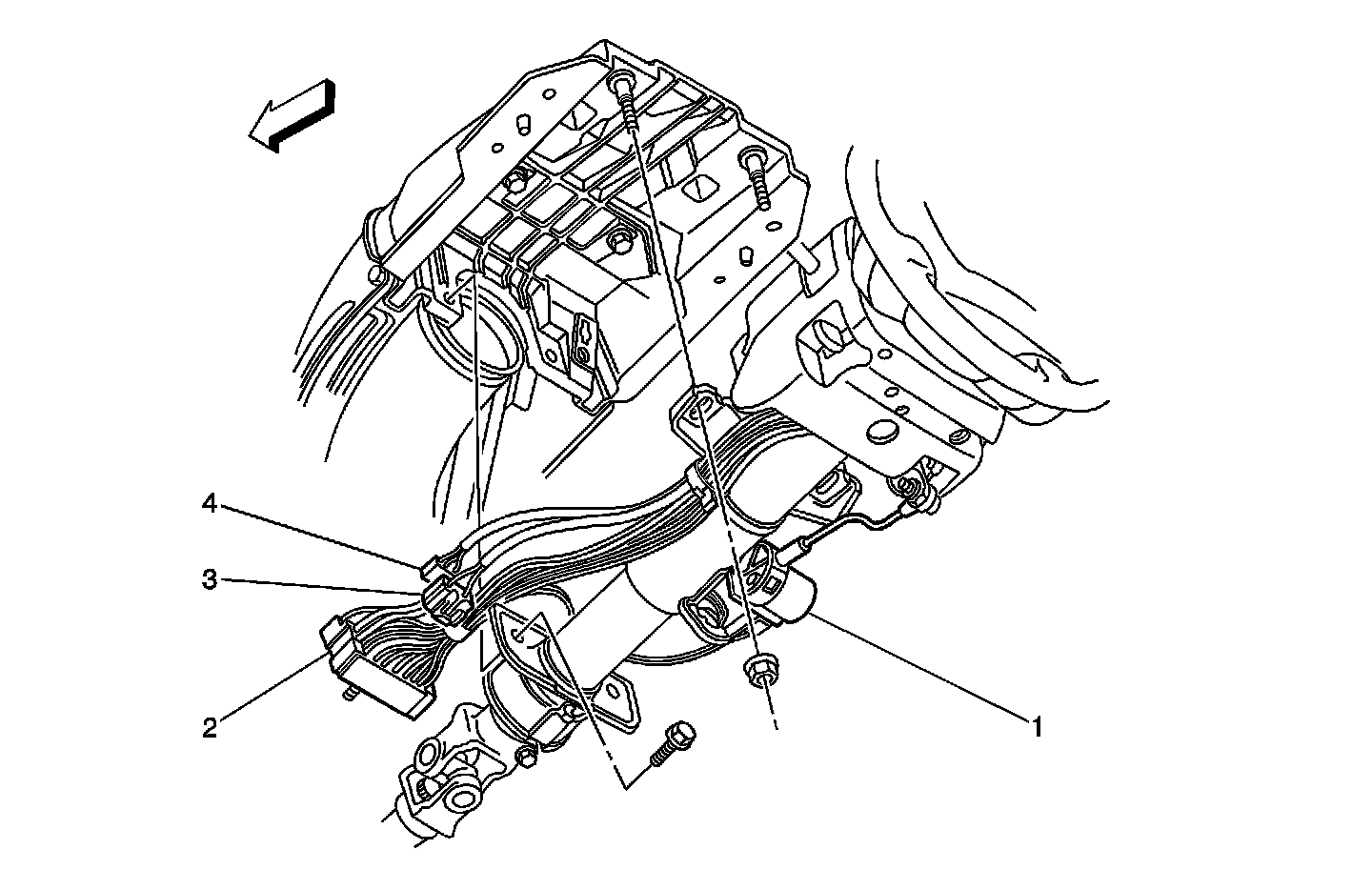

Steering Column





1 - Automatic Transmission Shift Lock Control Solenoid
2 - C201
3 - C205 (UK3)
4 - C207

Right Side of Instrument Panel - Rear





1 - Park Lamp Relay
2 - Brake to Shift Relay
3 - P100
4 - Fuse Block-I/P
