Oxygen Sensor

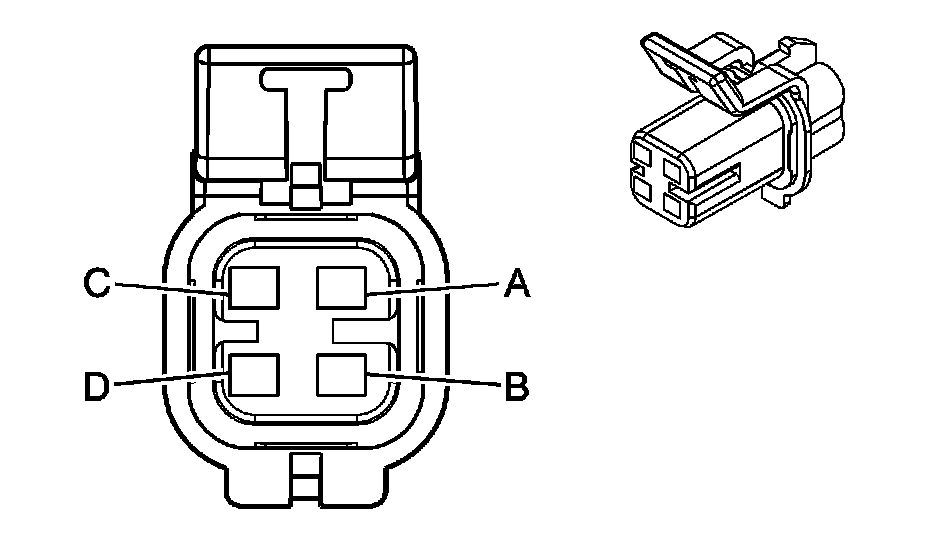

Engine Controls Connector End Views

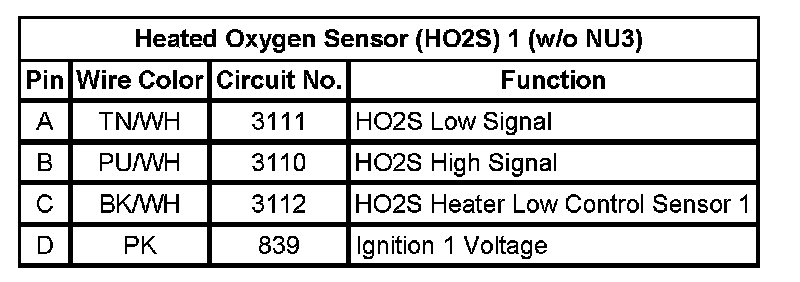

Heated Oxygen Sensor (HO2S) 1 (w/o NU3)

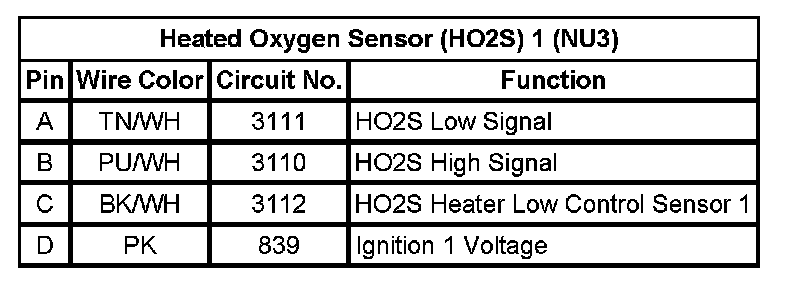

Heated Oxygen Sensor (HO2S) 1 (NU3)

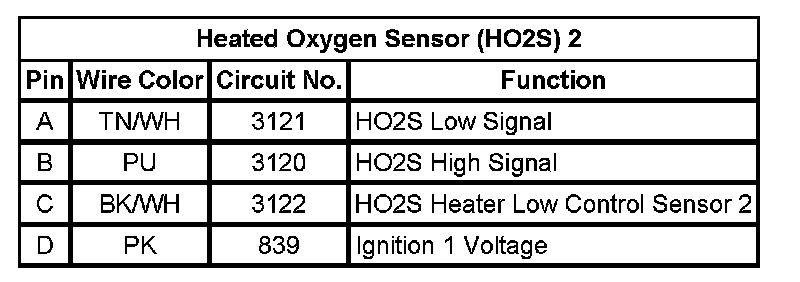

Heated Oxygen Sensor (HO2S) 2
