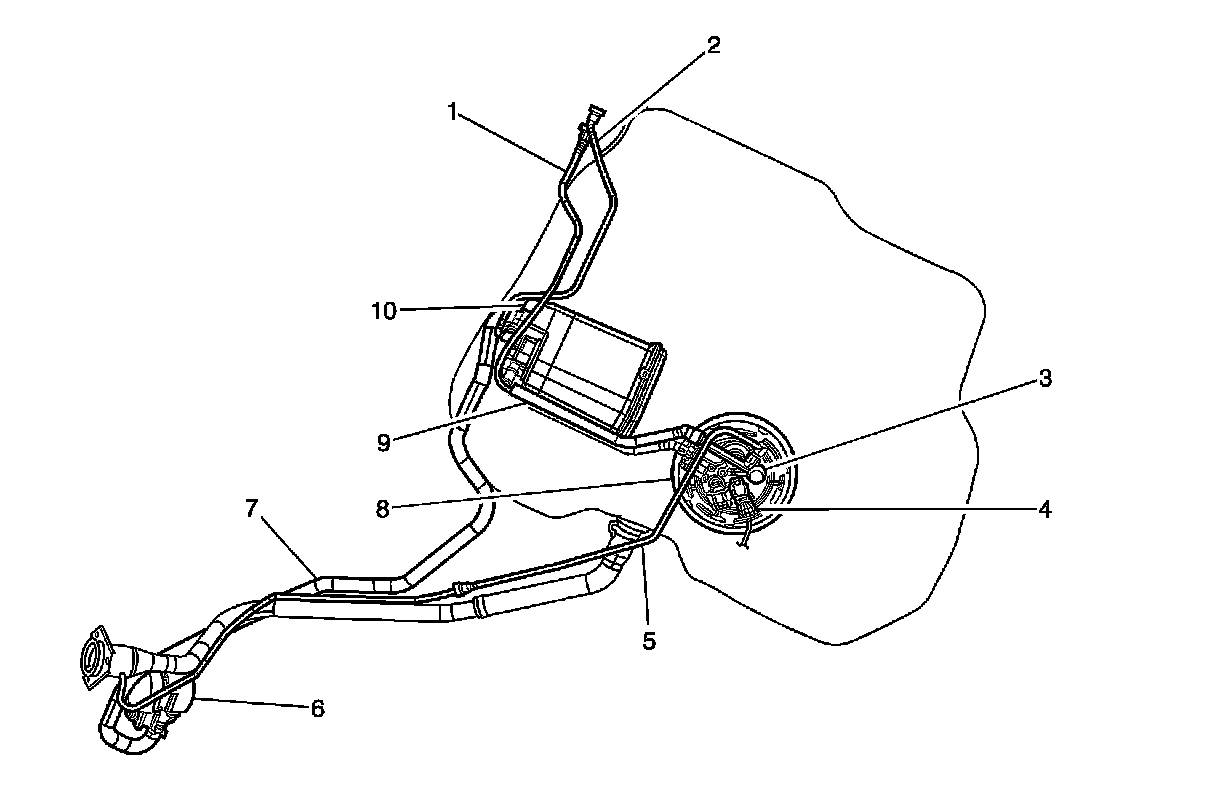

Evaporative Emissions Hose Routing Diagram

Evaporative Emissions Hose Routing Diagram




1 - Fuel Feed Pipe
2 - EVAP Purge Pipe to Engine
3 - Fuel Level Vent Valve
4 - Fuel Tank Pressure Sensor
5 - Fuel Filler Vent Pipe
6 - Canister Vent Valve
7 - Vent Pipe to Canister
8 - Modular Returnless Assembly
9 - EVAP Purge Pipe to Canister
10 - Canister
