Fuel Pump
Fuel Pump
Component Connector End Views

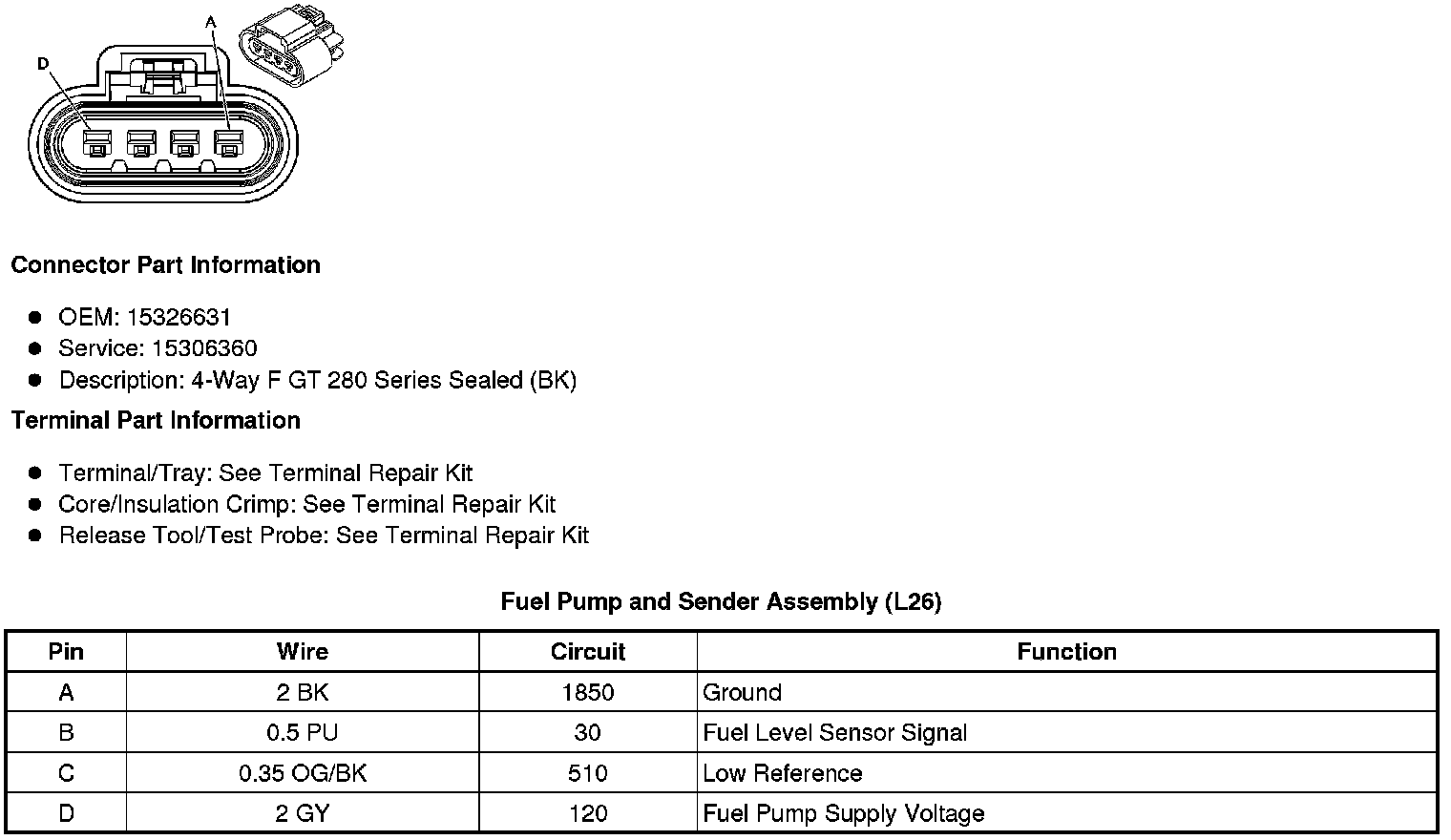

Fuel Pump and Sender Assembly (L26)
Fuel Pump and Sender Assembly (LY7)
