Air Inlet Actuator (CJ2) M4
Air Inlet Actuator (CJ2) M4
Component Connector End Views

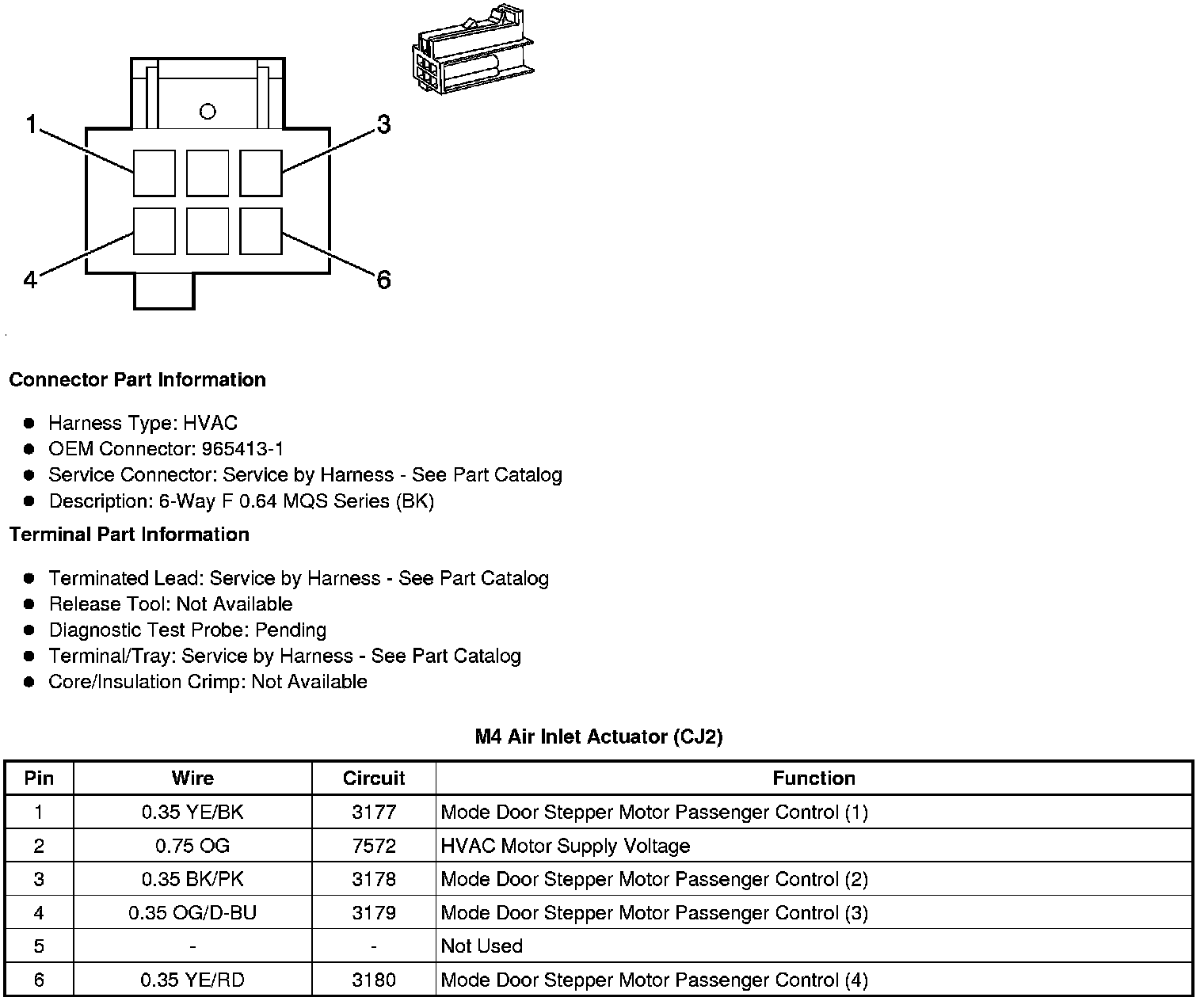

M4 Air Inlet Actuator (CJ2)
