Parking Assist Switch
Parking Assist Switch

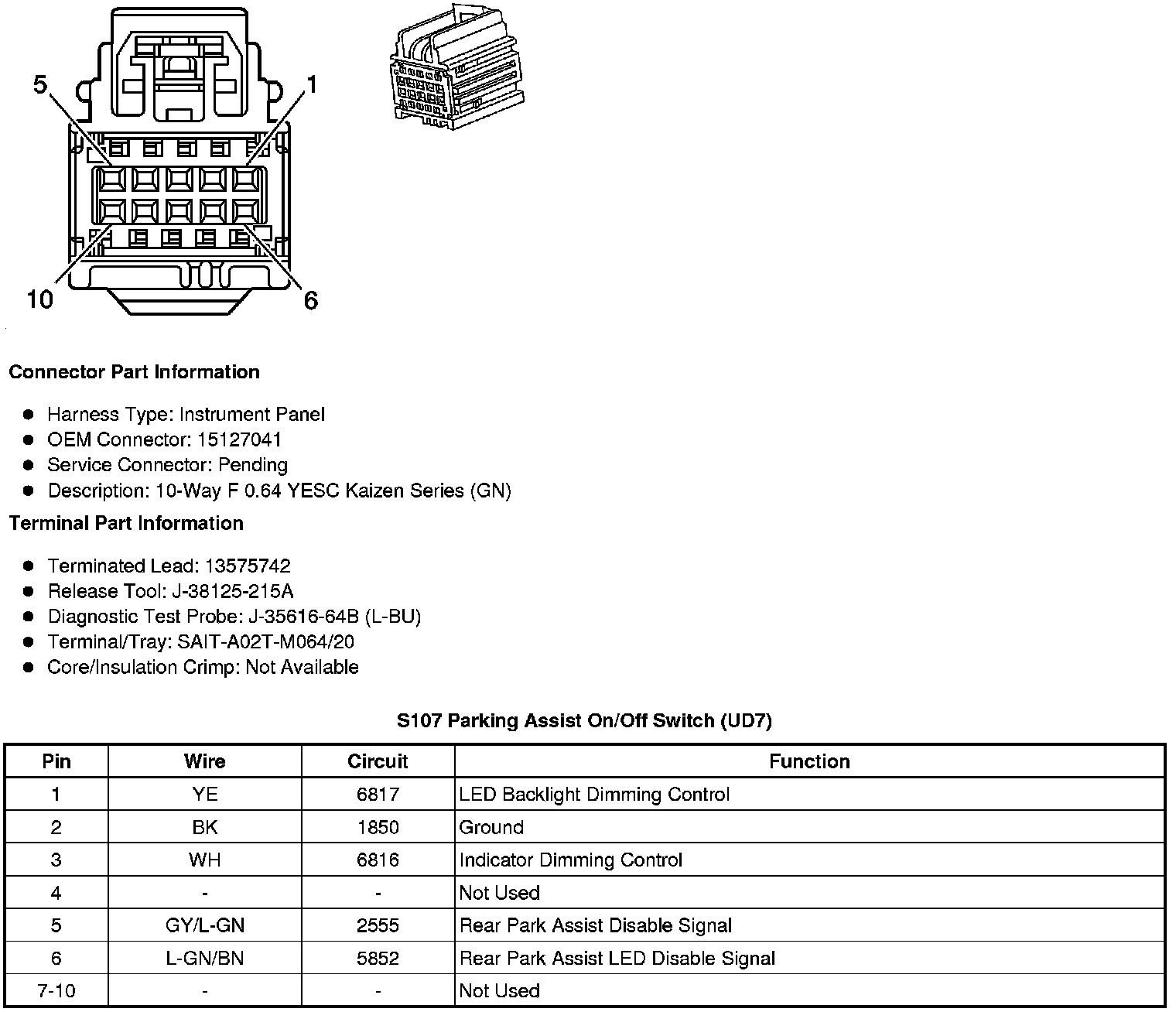

Component Connector End Views
S107 Parking Assist On/Off Switch (UD7)
