Radio/Navigation System Schematics
Radio/Navigation System Schematics

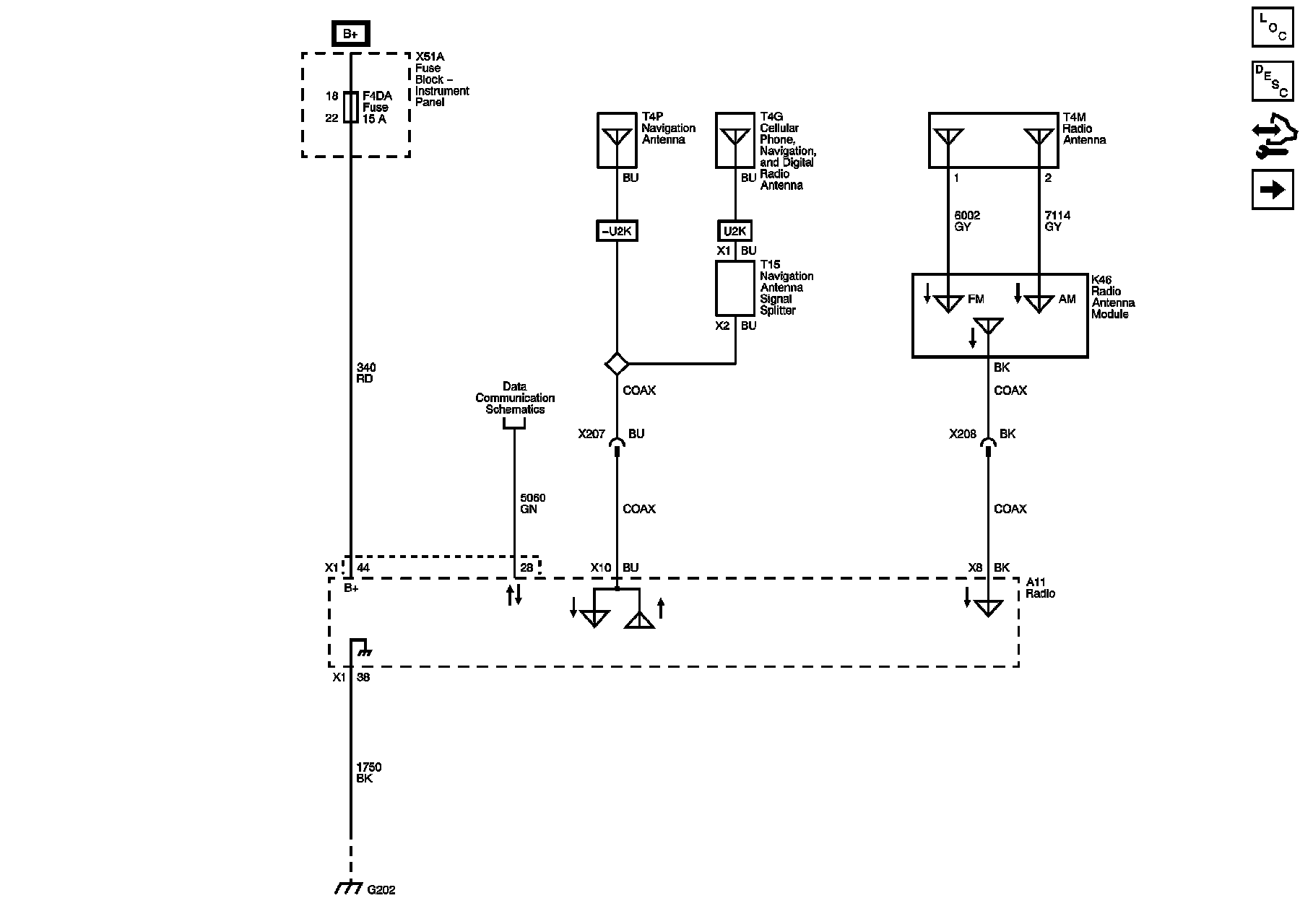

Power, Ground, Antennas and Serial Data
Amplifier (UQA)
Amplifier (UQA with UYS or UWG)

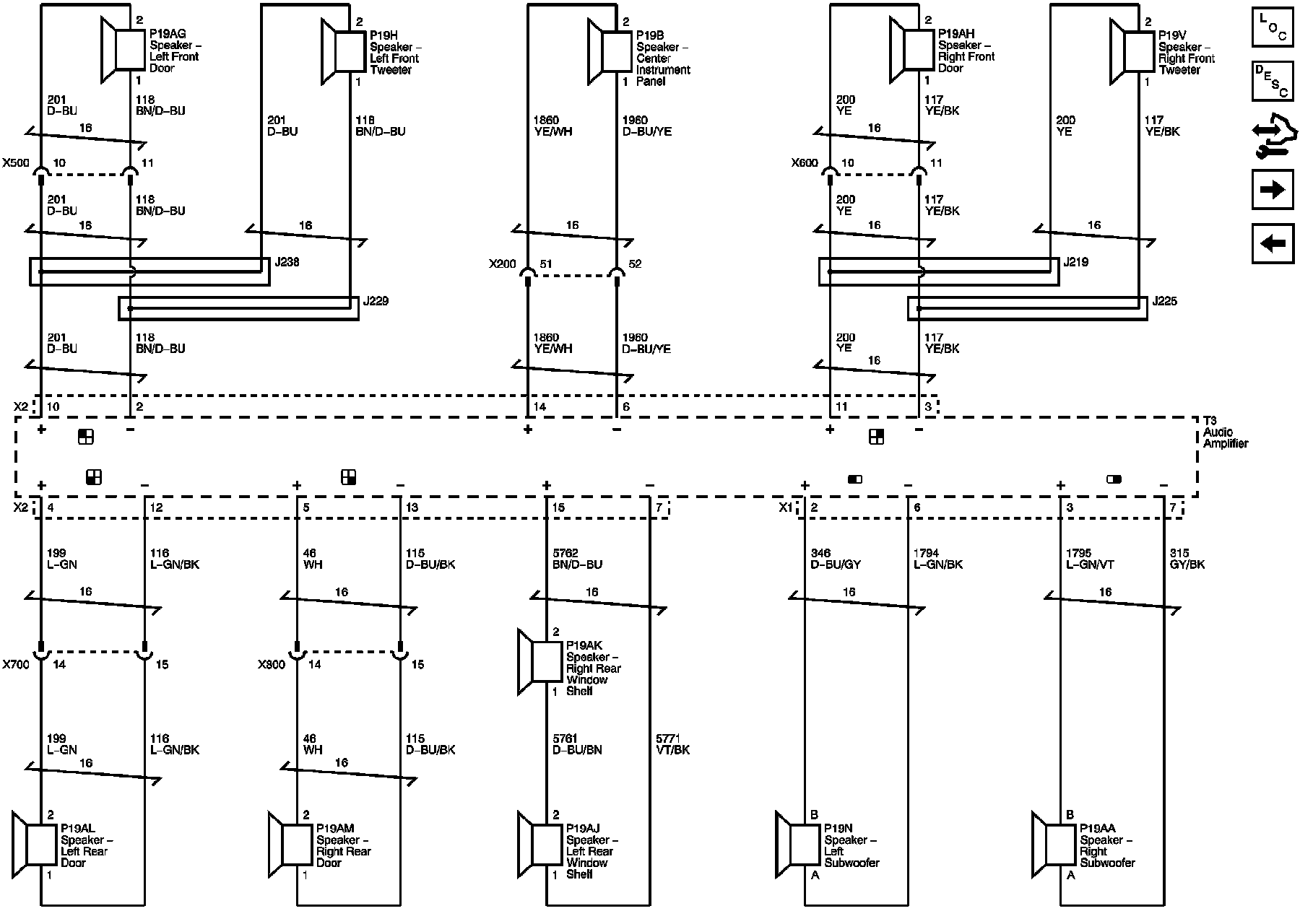

Speakers (UQA)
Speakers (U65)
Display (without UYS)
Navigation System (UYS)
USB Interface (USR without KTA)
USB Interface (KTA)
