Mode Door Actuator (CJ2)
Mode Door Actuator (CJ2)
Component Connector End Views

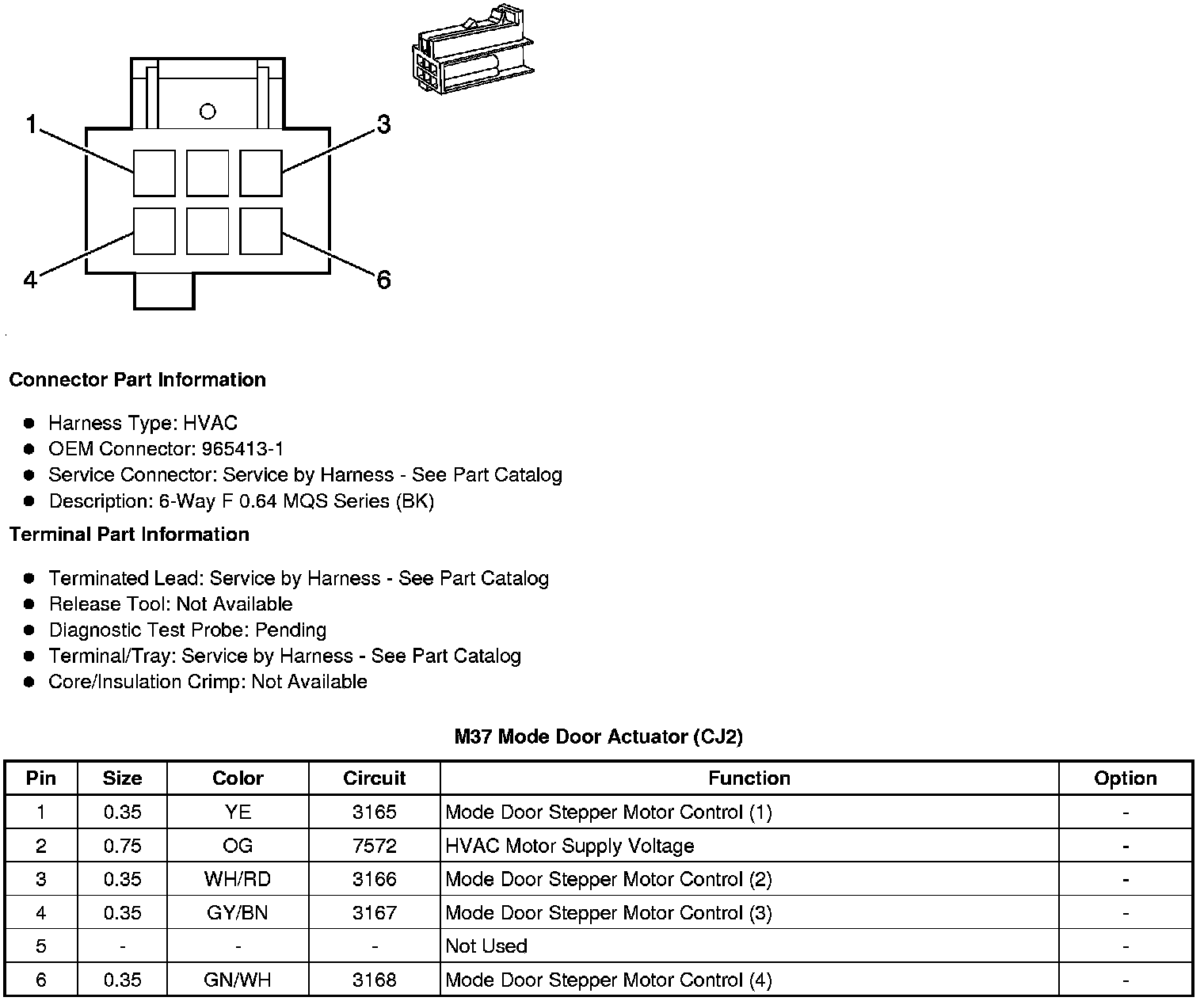

M37 Mode Door Actuator (CJ2)
