Seat Blower Motor - Passenger Back (KU3)
Seat Blower Motor - Passenger Back (KU3)
Component Connector End Views

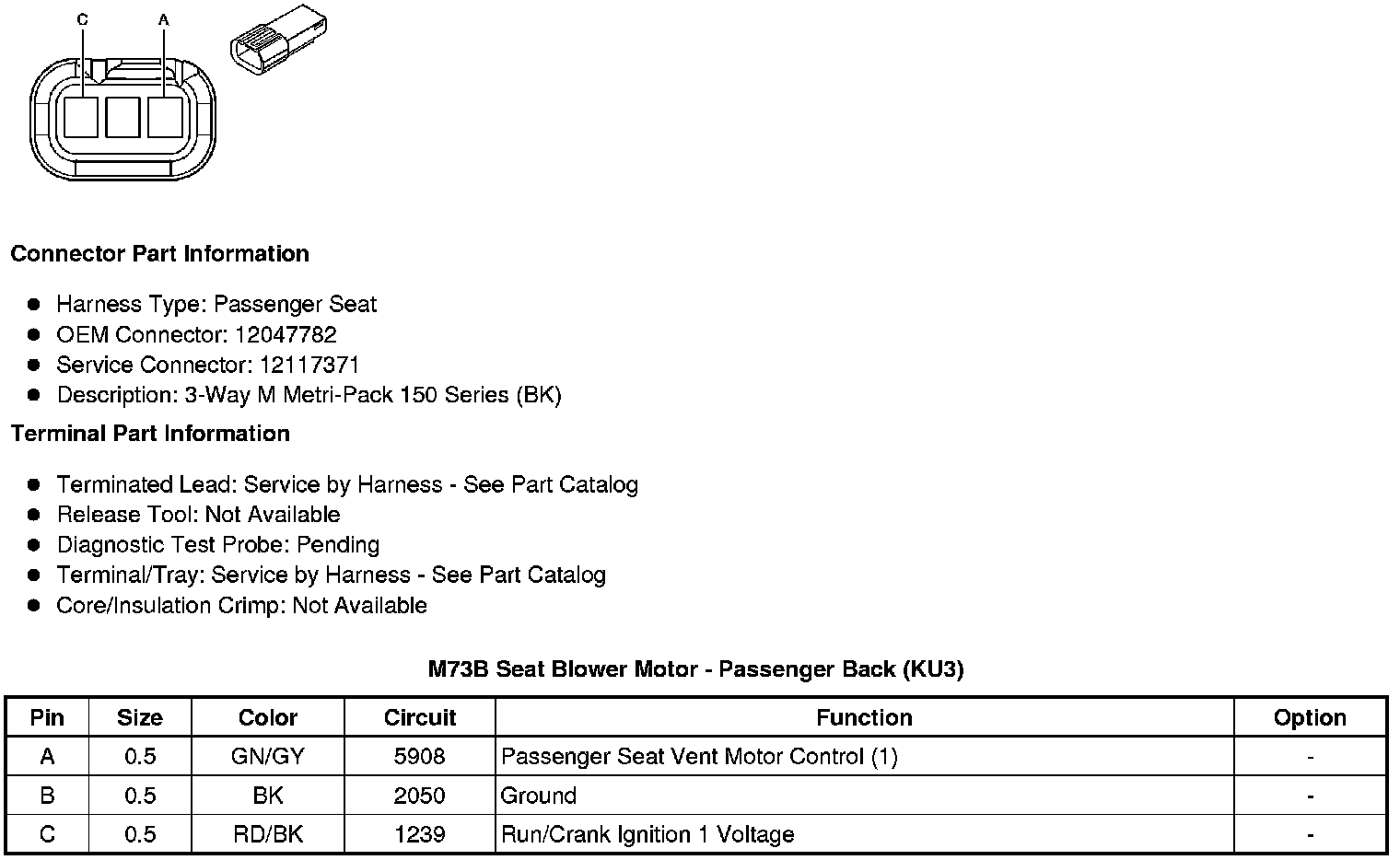

M73B Seat Blower Motor - Passenger Back (KU3)
