Left Rear of Engine
Left Rear of Engine
Harness Routing Views

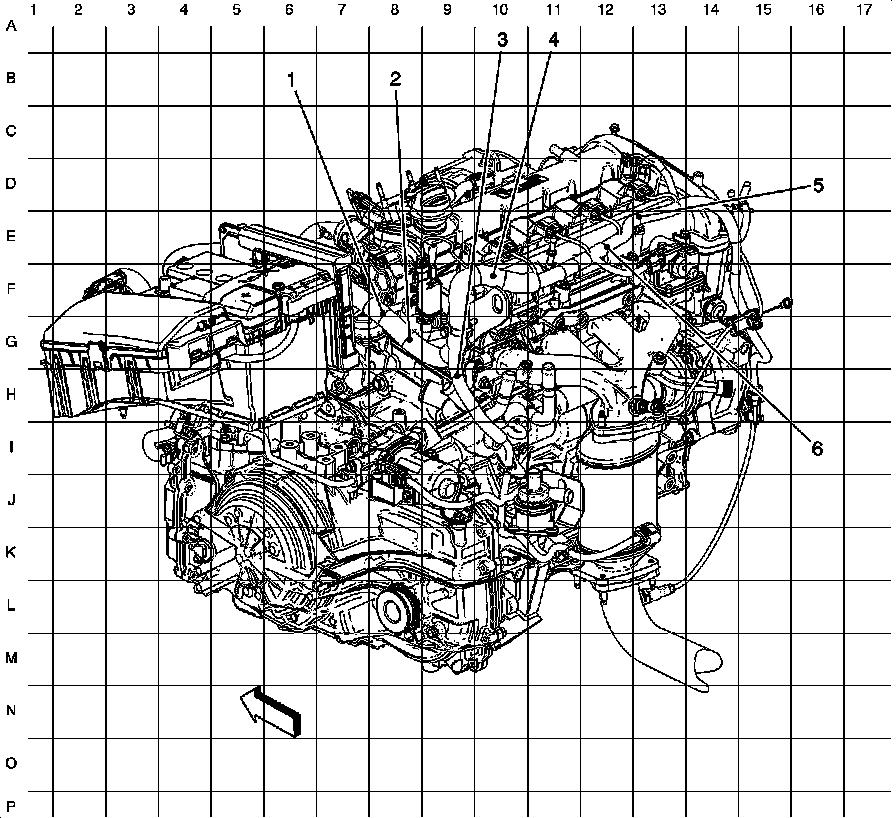

Left Rear of Engine (LUK)
1
- J131
2
- J132
3
- J113
4
- J118
5
- J109
6
- J140
