X53A Fuse Block - Rear Body X1 (ATH, BTM, DB3, F45, F46, KA1, UD7, UFT, UVD, or UWG)




Electrical Center Identification Views

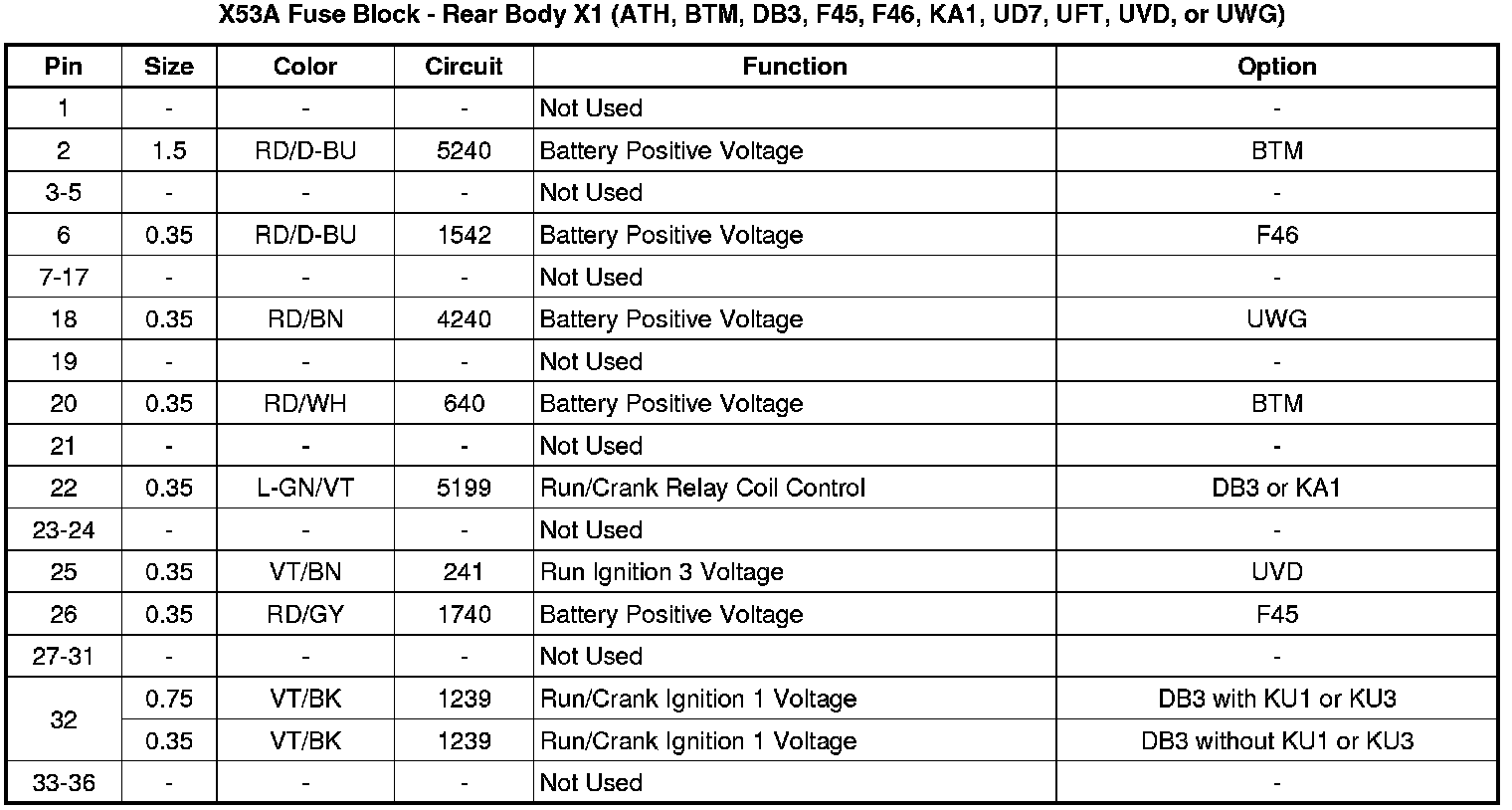

X53A Fuse Block - Rear Body X1 (ATH, BTM, DB3, F45, F46, KA1, UD7, UFT, UVD, or UWG)
