Battery Cooling Fan, Hybrid Drive
Battery Cooling Fan, Hybrid Drive

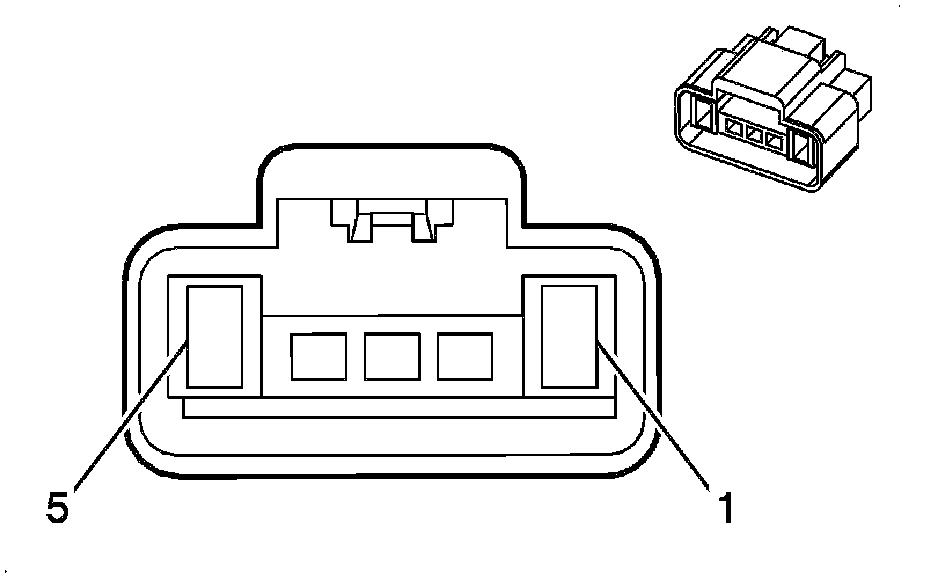

Component Connector End Views

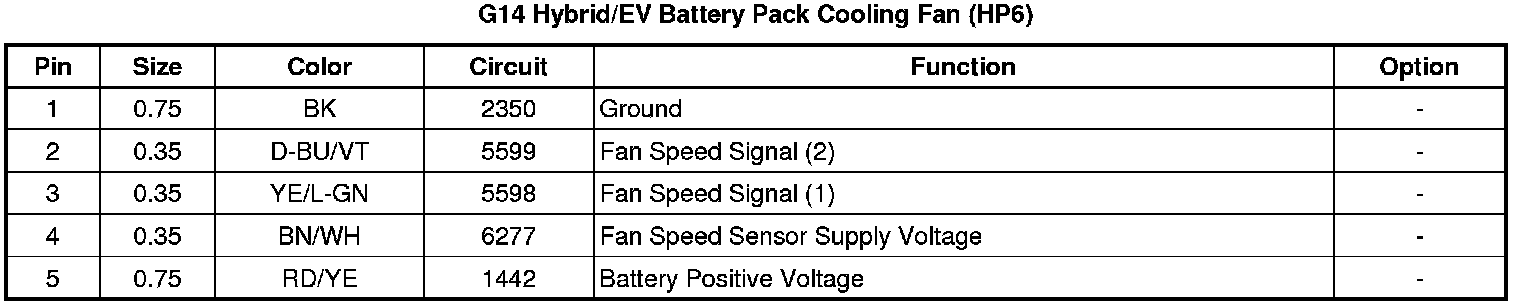

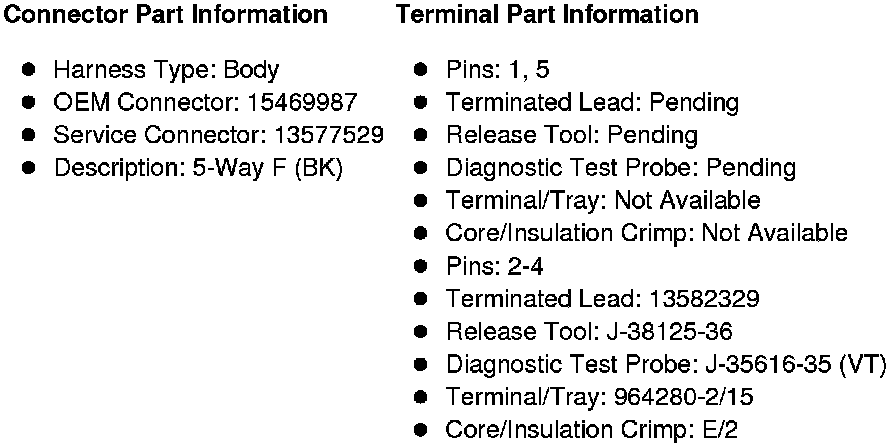

G14 Hybrid/EV Battery Pack Cooling Fan (HP6)
