Starter/Generator Coolant Temperature Sensor
Starter/Generator Coolant Temperature Sensor

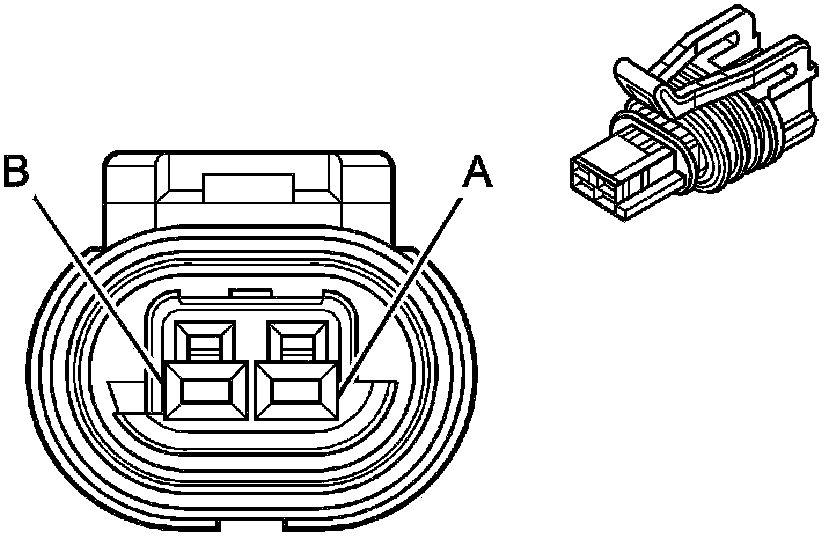

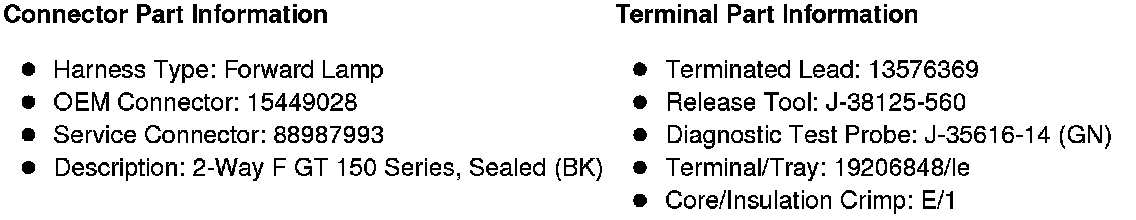

Component Connector End Views

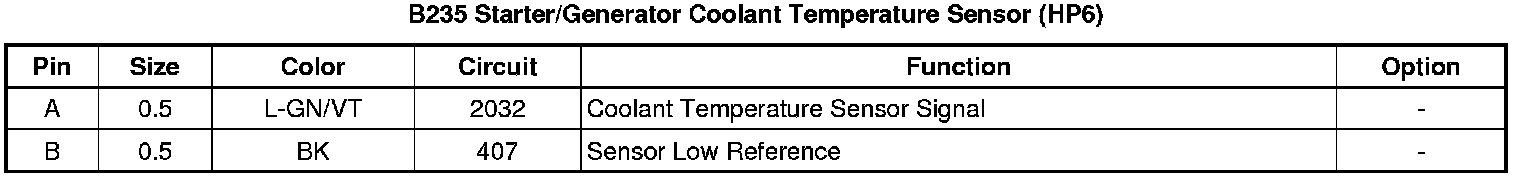

B235 Starter/Generator Coolant Temperature Sensor (HP6)
