Steering Wheel Air Bag Coil X5 (UVD)
Steering Wheel Air Bag Coil X5 (UVD)

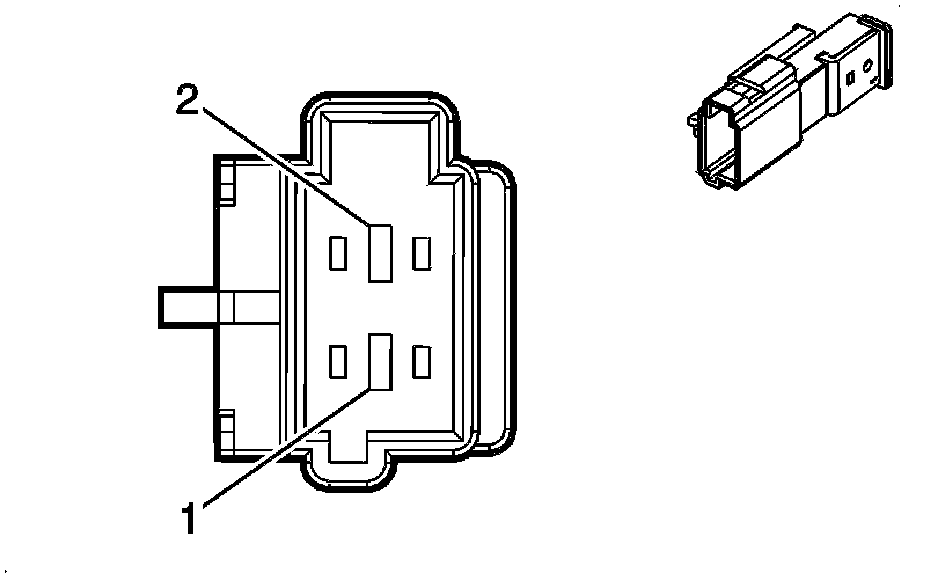

Component Connector End Views

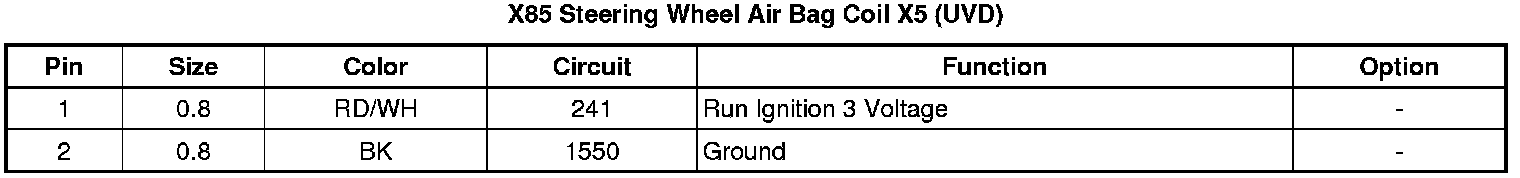

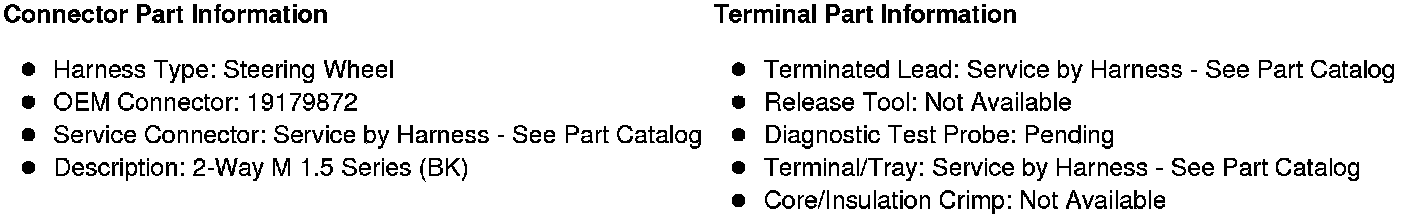

X85 Steering Wheel
Air Bag
Coil X5 (UVD)
