Forward Lamp Harness Routing - Lower
Forward Lamp Harness Routing - Lower
Harness Routing Views

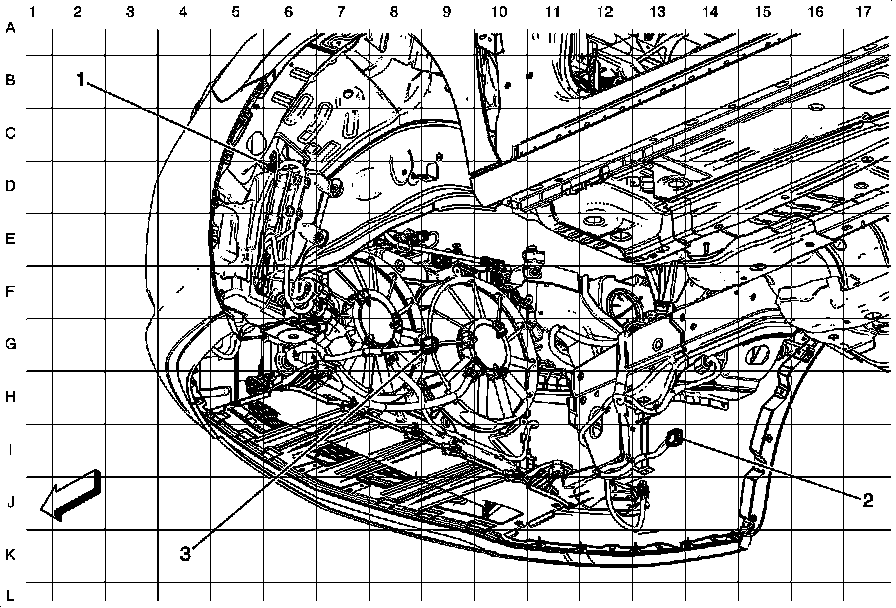

Forward Lamp Harness Routing - Lower
1
- J101
2
- X104 (F45)
3
- X103 (F45)
