Hybrid/EV Battery Pack - Top View

Luggage Compartment/Rear of Vehicle Component Views

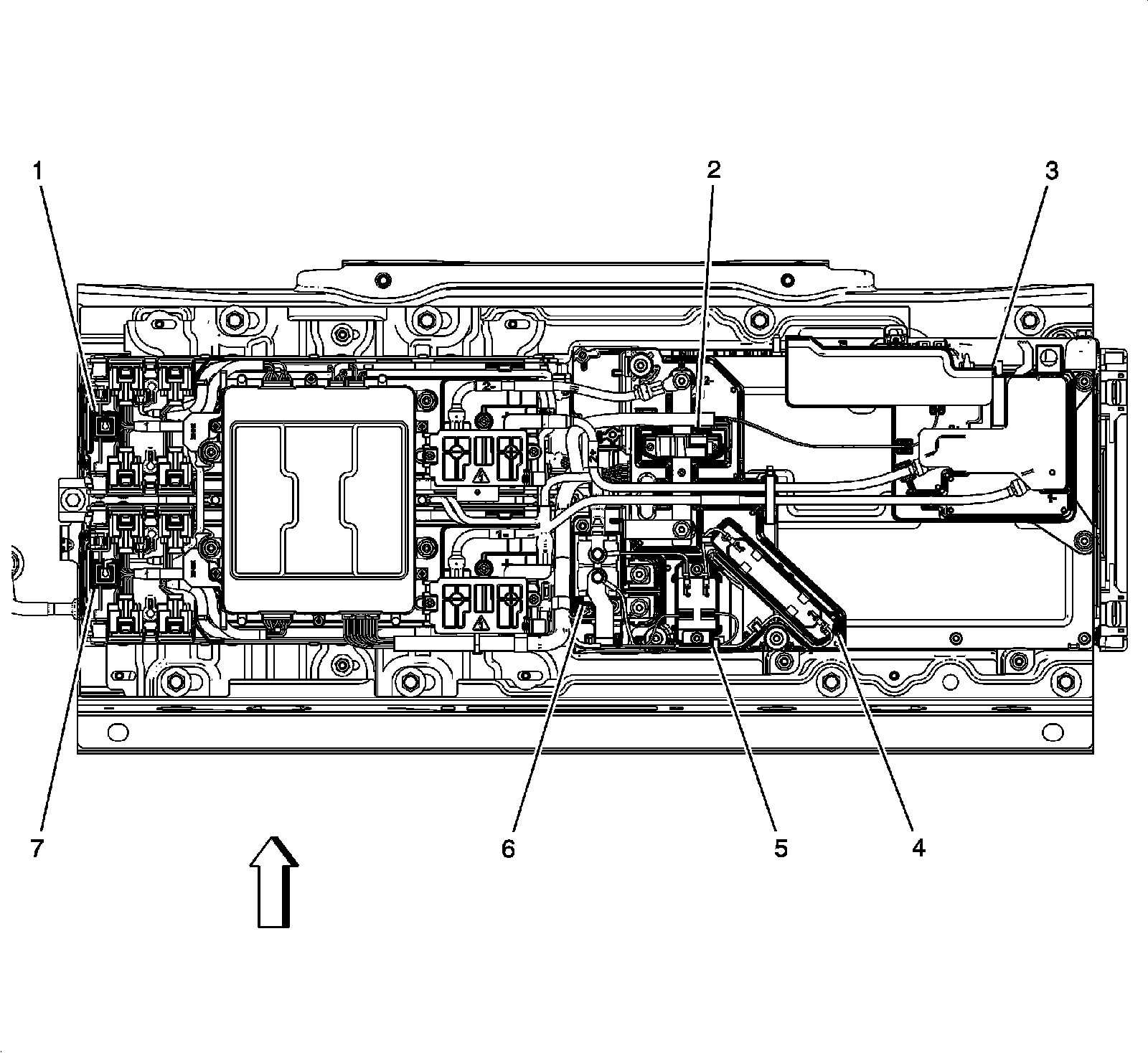

Hybrid/EV Battery Pack - Top View (HP6)





1 - B32A Hybrid/EV Battery Temperature Sensor 1

2 - B30 Hybrid/EV Battery Pack Current Sensor

3 - S15 Hybrid/EV Battery Pack High Voltage Manual Disconnect Lever

4 - R25 Hybrid/EV Battery Pre-Charge Resistor

5 - KR134 Pre-Charge Contractor

6 - KR38 Main Contractor

7 - B32D Hybrid/EV Battery Temperature Sensor 4
