Camshaft Position Actuator Solenoid Valve - Bank 1 Intake (LFX)

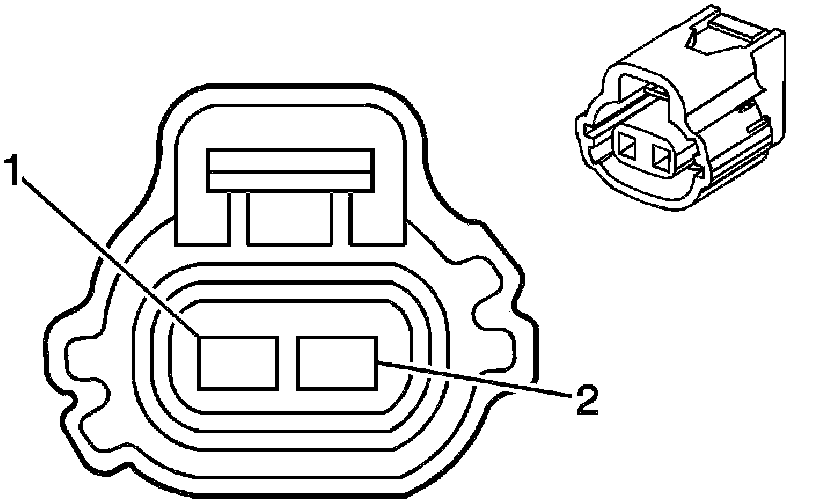

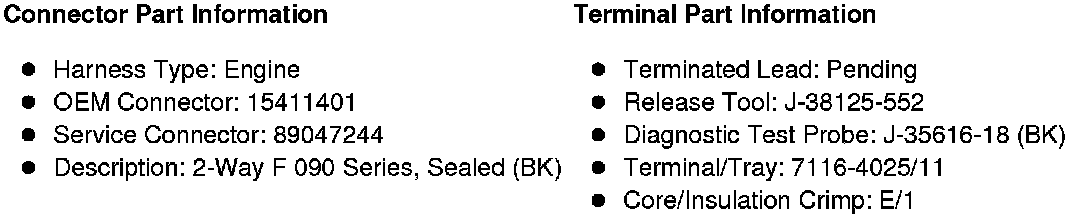

Component Connector End Views

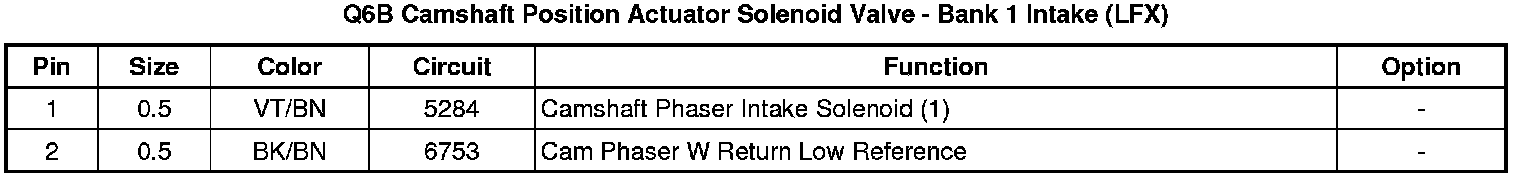

Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake (LFX)
