Hazard Warning Switch (CZ2)
Hazard Warning Switch (CZ2)

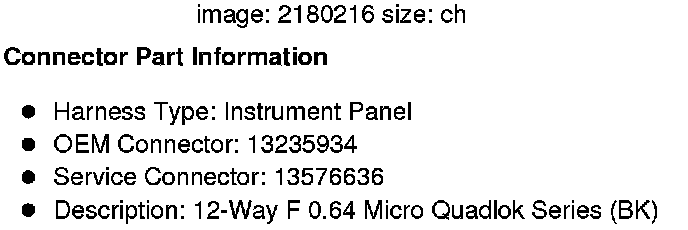

Component Connector End Views

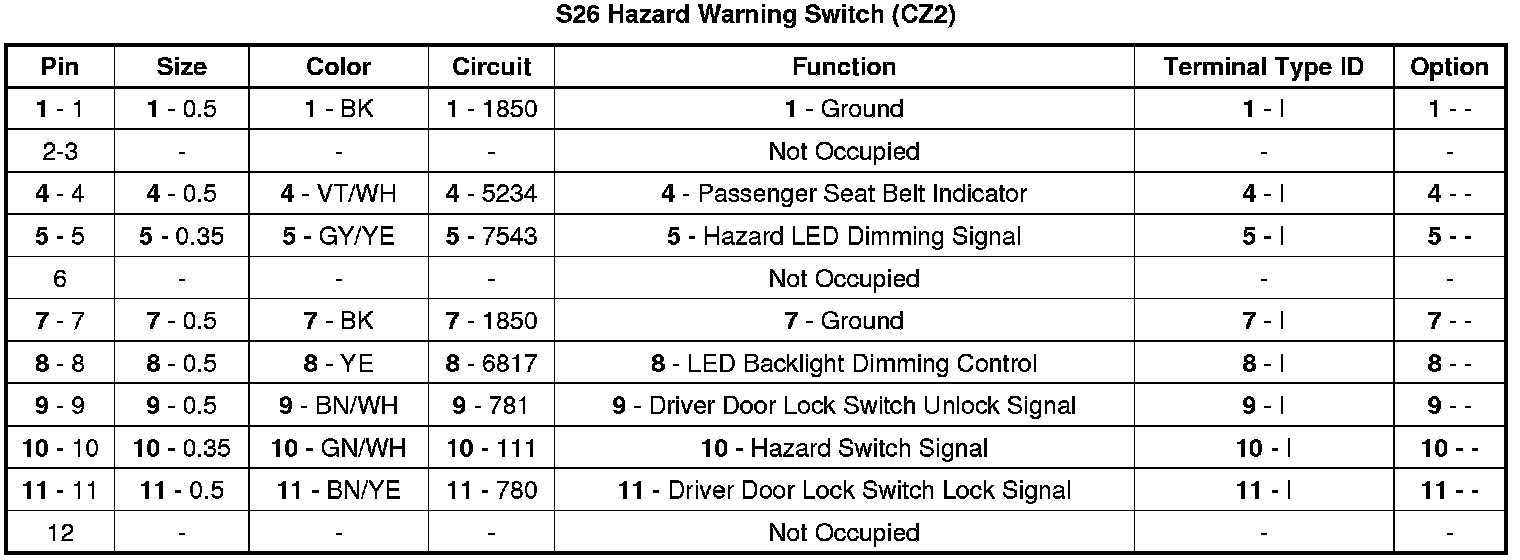

S26
Hazard Warning Switch
(CZ2)
