Operation CHARM
: Car repair manuals for everyone.
Home
>>
Buick
>>
2013
>>
Regal L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Name
>>
Side Impact Sensor - Left Front
Side Impact Sensor - Left Front
Component Connector End Views

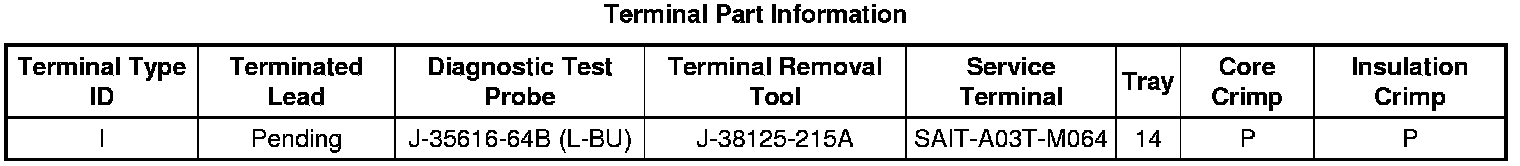

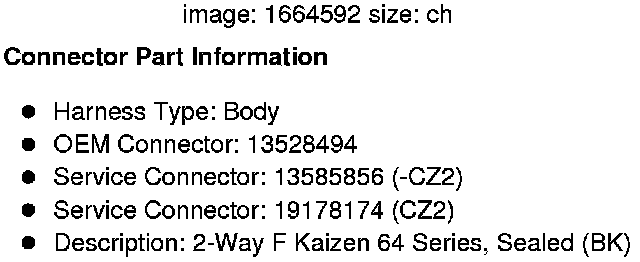

B63LF Side Impact Sensor - Left Front
