Side Impact Sensor - Left Rear (AW7)
Side Impact Sensor - Left Rear (AW7)
Component Connector End Views

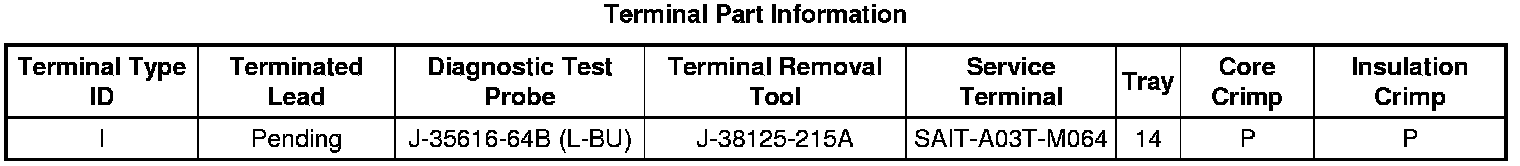

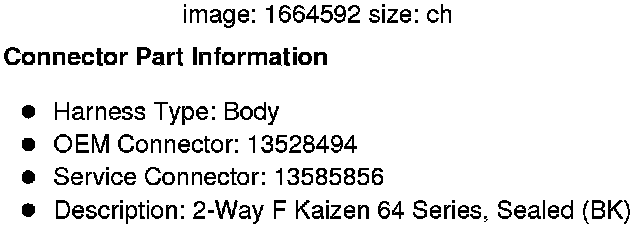

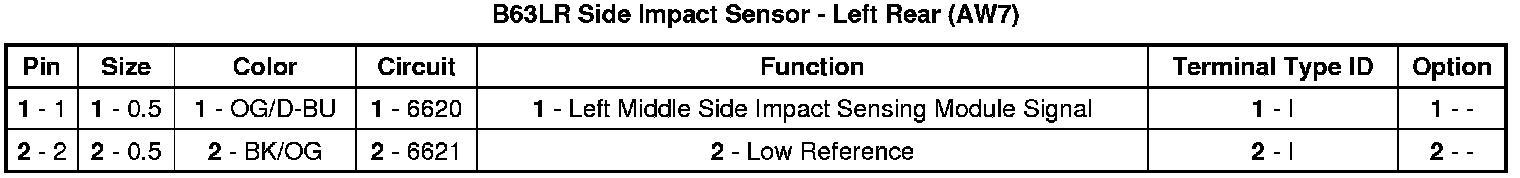

B63LR Side Impact Sensor - Left Rear (AW7)
