Fuel Door Release Actuator
>>
Fuel Door Lock Actuator
Fuel Door Lock Actuator
Component Connector End Views

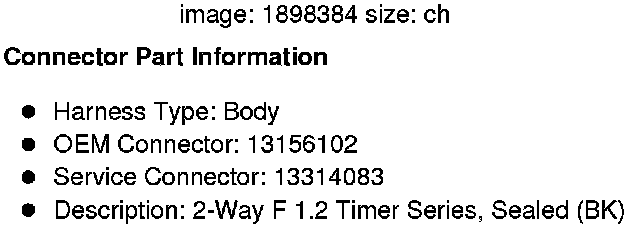

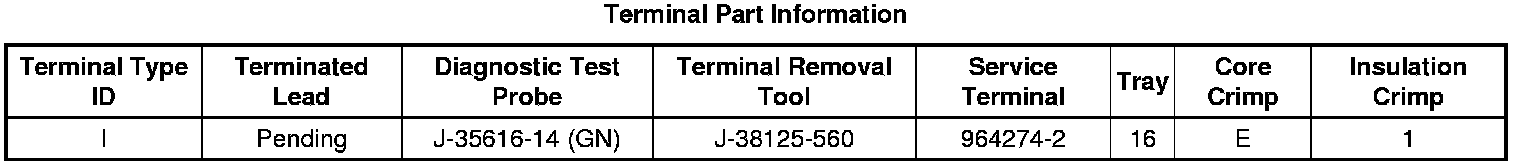

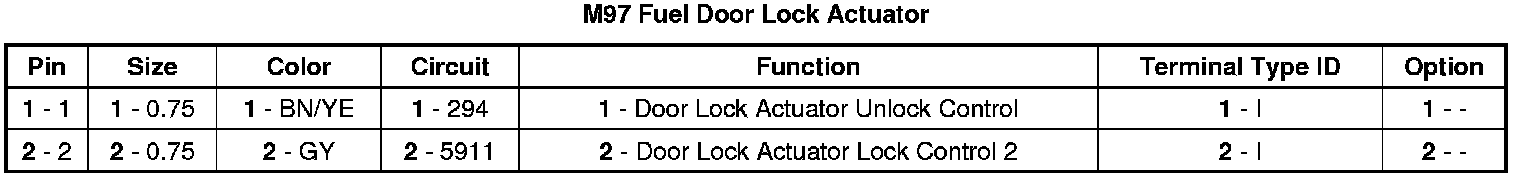

M97 Fuel Door Lock Actuator
