Home
>>
Buick
>>
2013
>>
Regal L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>
Window Switch - Right Rear (CZ2)
Window Switch - Right Rear (CZ2)
Component Connector End Views

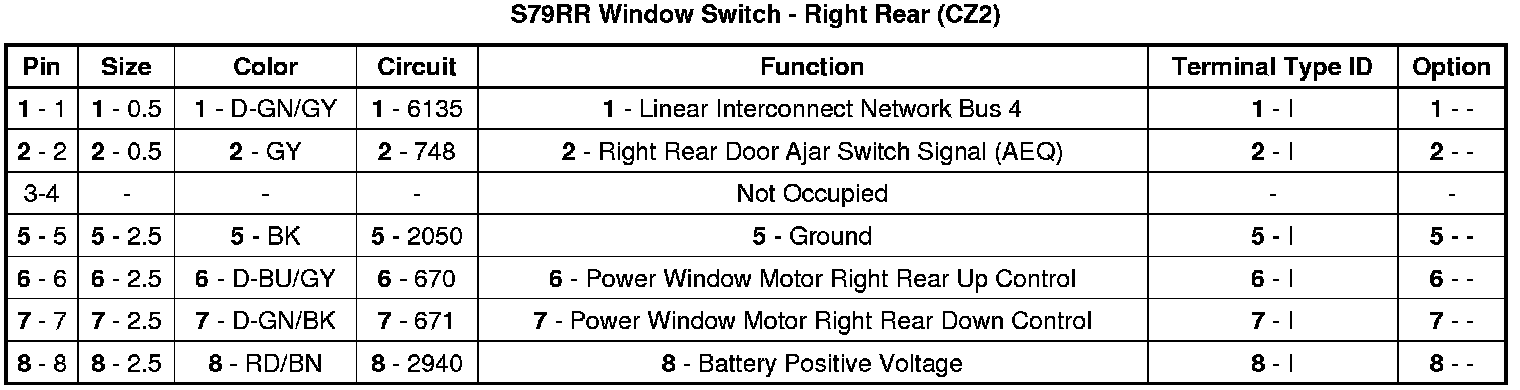

S79RR Window Switch - Right Rear (CZ2)
