Seat Occupant Sensor
Seat Occupant Sensor
Component Connector End Views

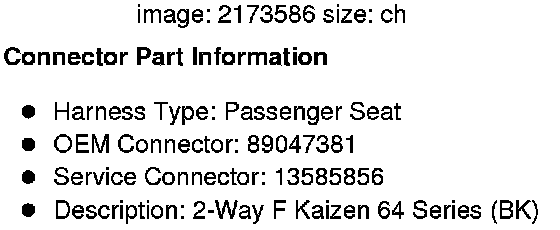

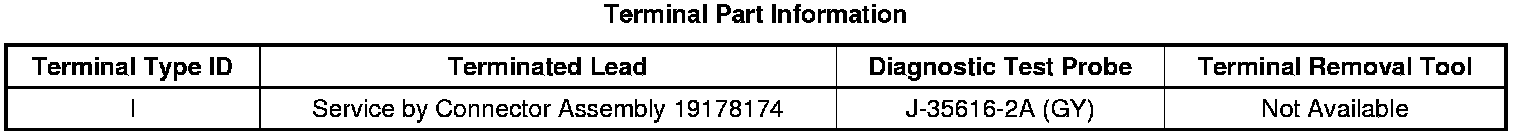

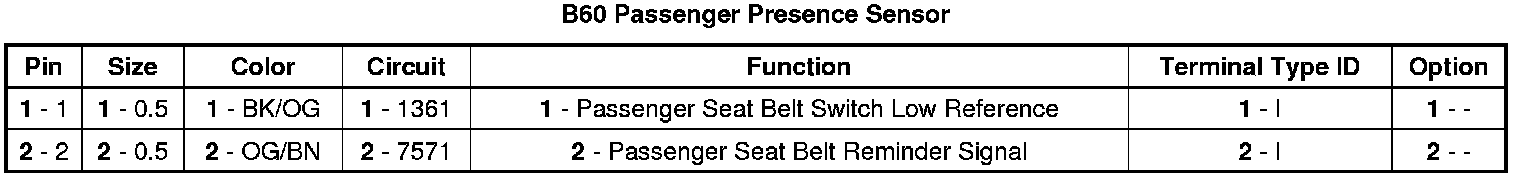

B60 Passenger Presence Sensor
