Seat Lumbar Adjuster Pump - Driver (APG)
Seat Lumbar Adjuster Pump - Driver (APG)
Component Connector End Views

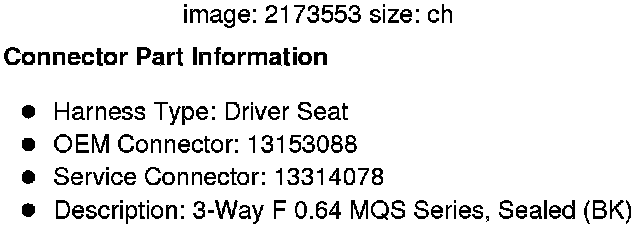

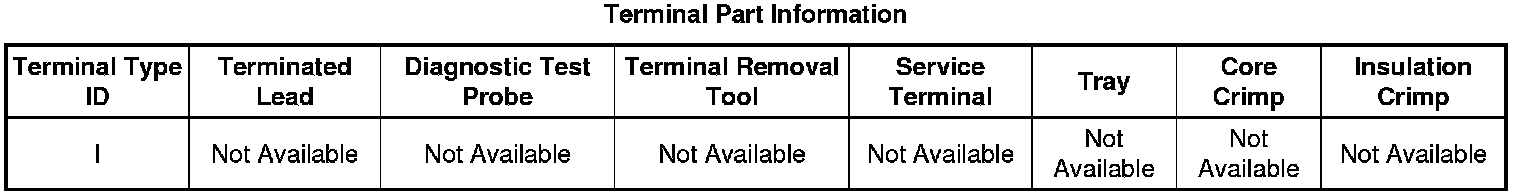

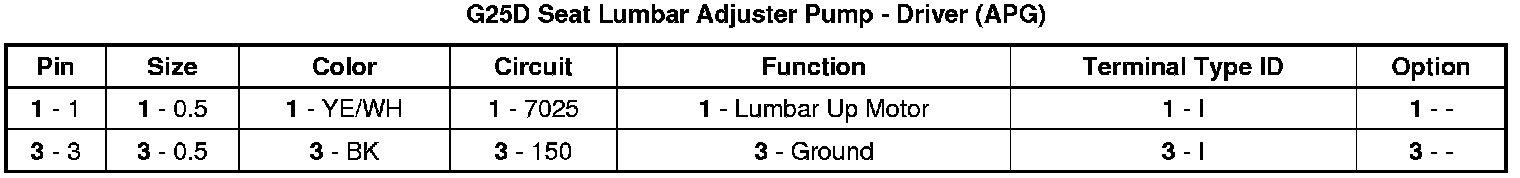

G25D Seat Lumbar Adjuster Pump - Driver (APG)
