Transmission Manual Shift Switch X1 (MDK, MH8, MHH or MHK)
Transmission Manual Shift Switch X1 (MDK, MH8, MHH or MHK)

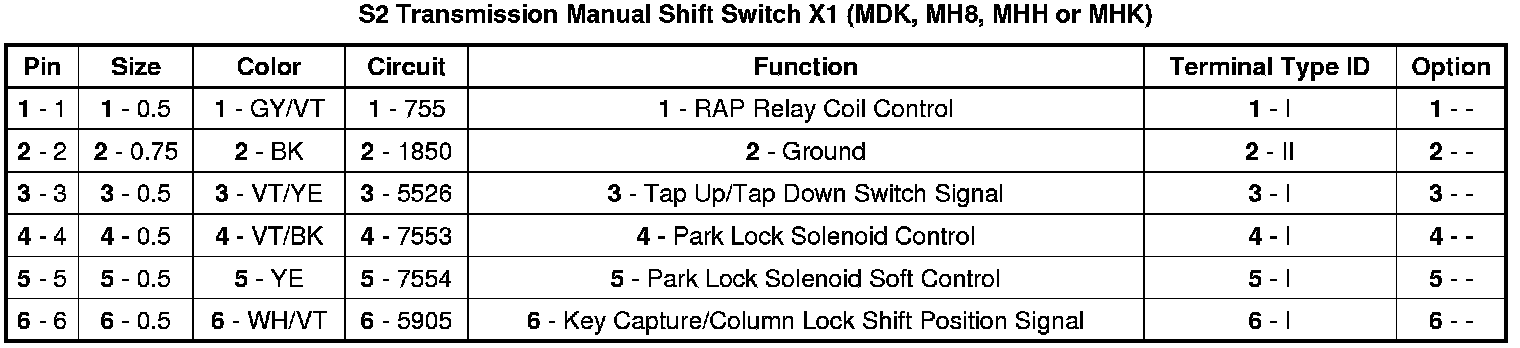

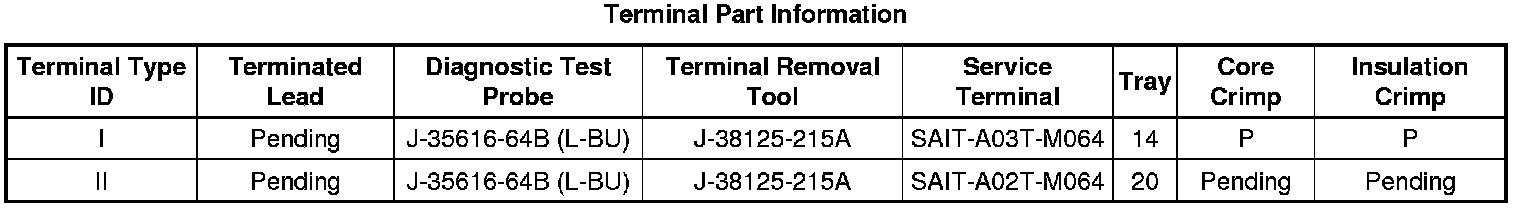

Component Connector End Views
S2
Transmission
Manual Shift Switch X1 (MDK, MH8, MHH or MHK)
