Speaker
>>
Speaker - Right Front Tweeter
Speaker - Right Front Tweeter

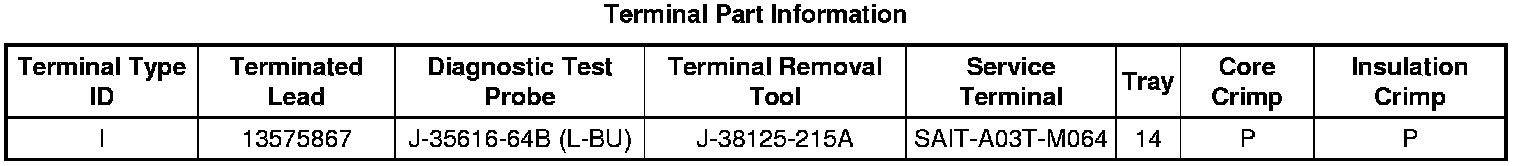

Component Connector End Views

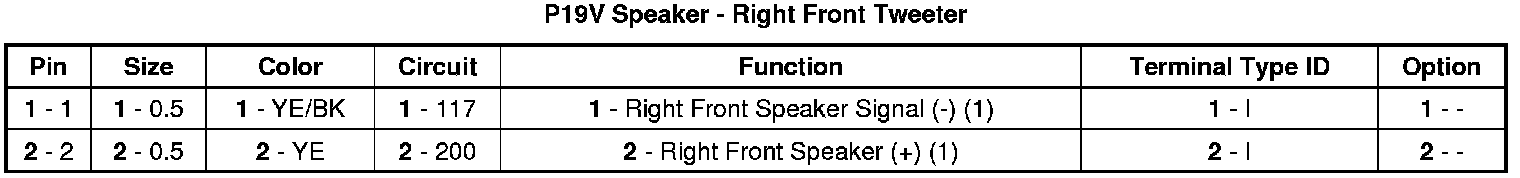

P19V Speaker - Right Front Tweeter
