Sunroof / Moonroof Motor
Sunroof / Moonroof Motor

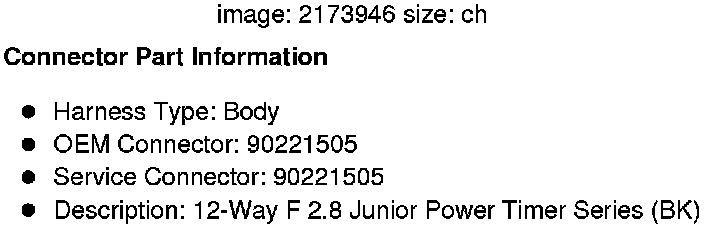

Component Connector End Views

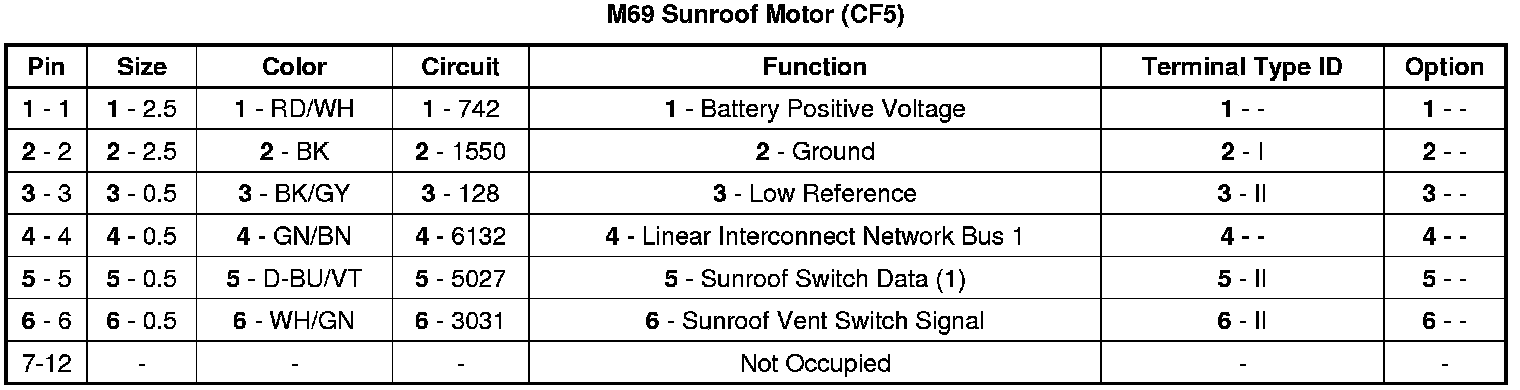

M69 Sunroof Motor (CF5)
