Tail Lamp
>>
Tail Lamp Assembly - Right CZ2
Tail Lamp Assembly - Right CZ2

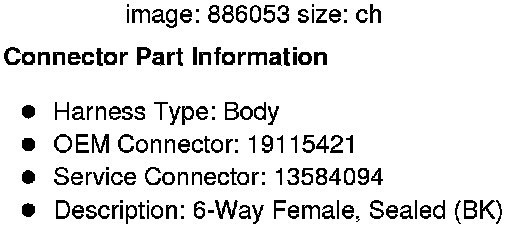

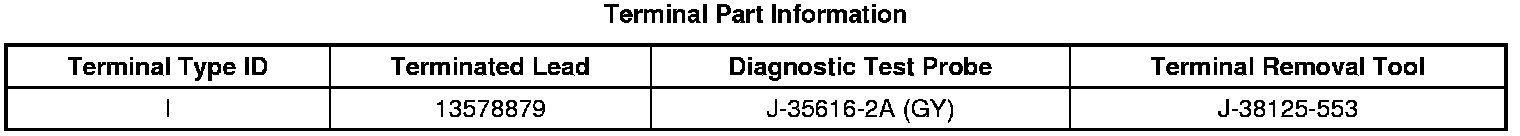

Component Connector End Views

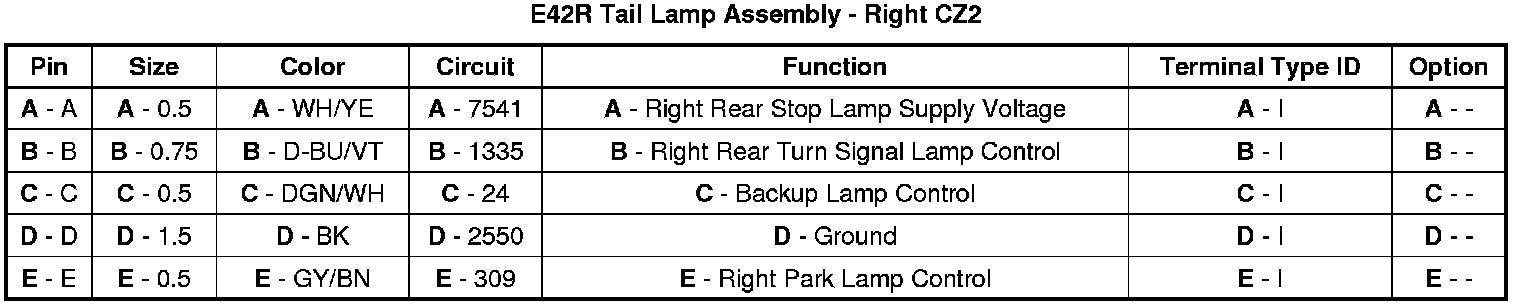

E42R
Tail Lamp
Assembly - Right CZ2
