Operation CHARM
: Car repair manuals for everyone.
Home
>>
Buick
>>
2013
>>
Regal L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Throttle Position Sensor
Throttle Position Sensor

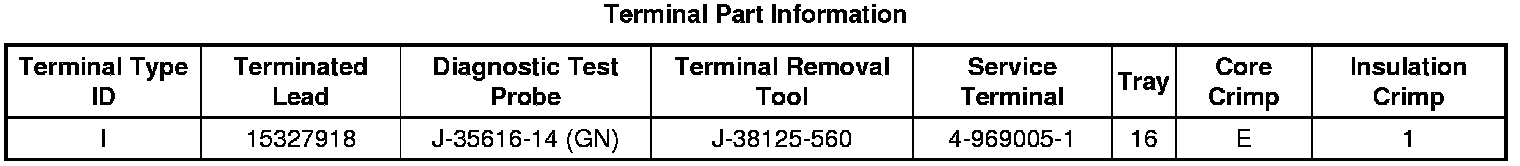

Component Connector End Views

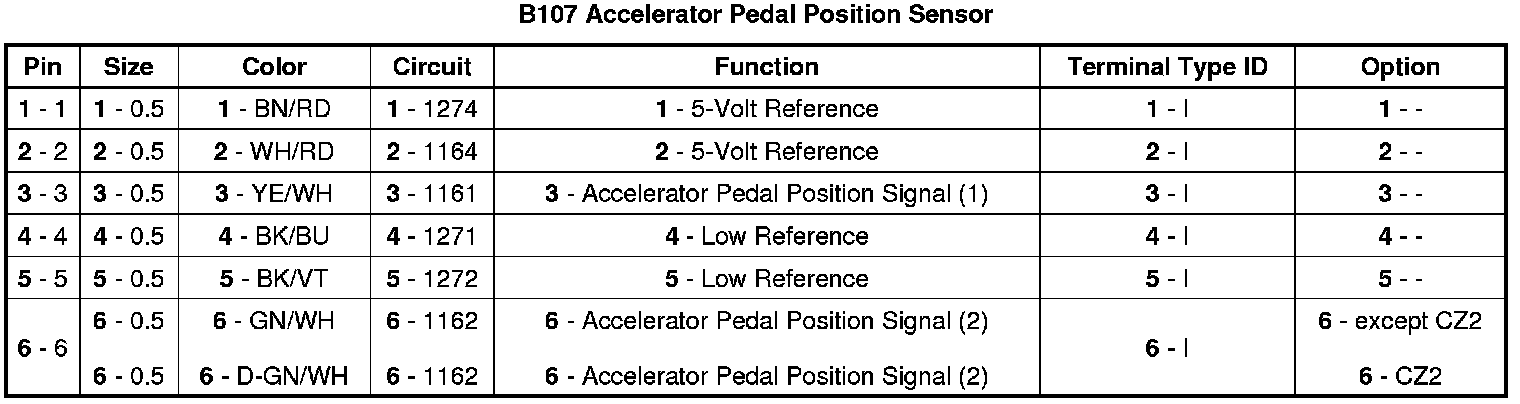

B107
Accelerator Pedal Position Sensor
