6T40/6T50 (MHH, MHK) - Automatic Transmission





Automatic Transmission Controls Schematics

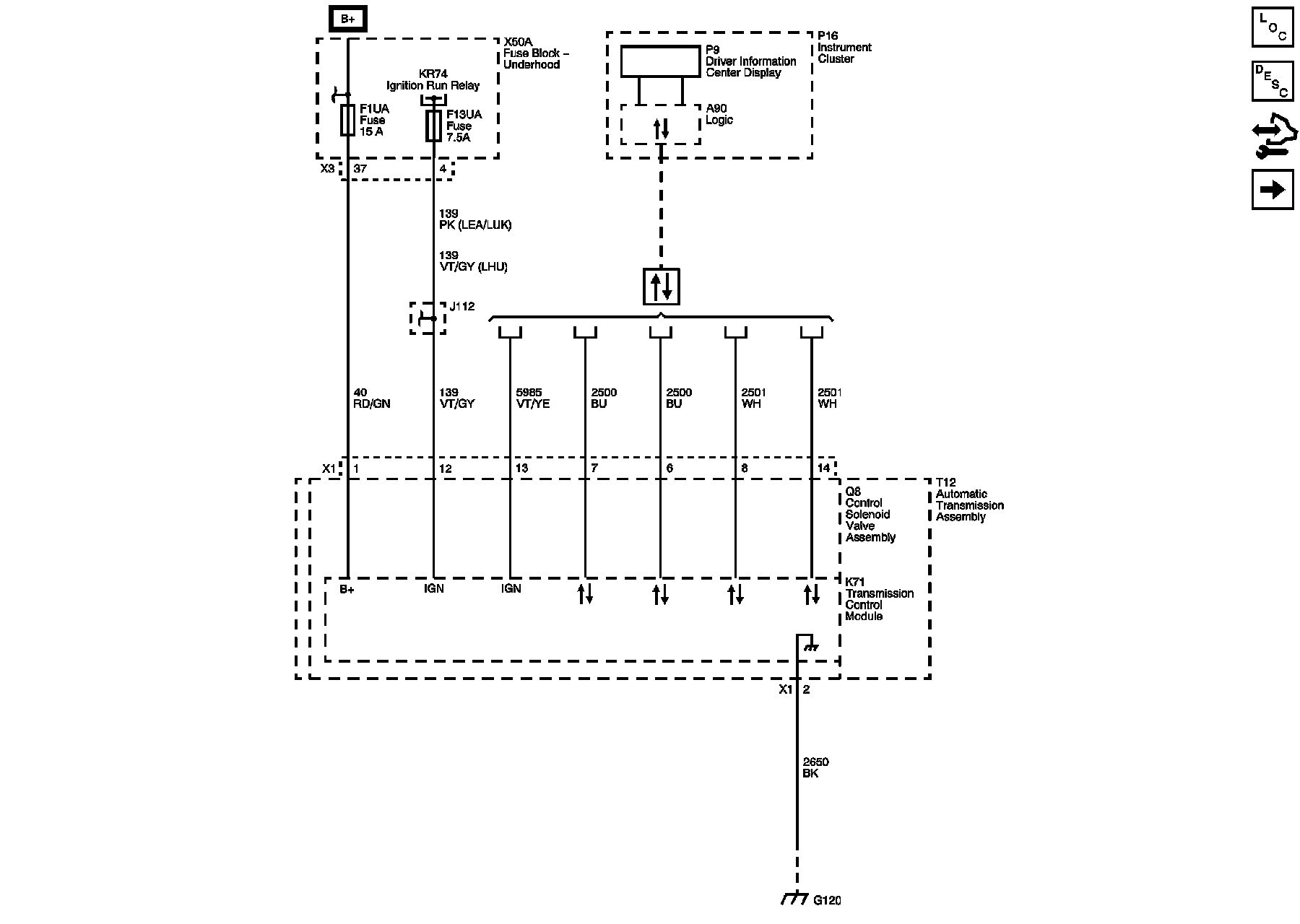

Module Power, Ground, Serial Data, and MIL





Speed and Temperature Sensors, Valve Position, Pressure and Shift Controls





Brake Apply, Internal Mode and Manual Shift Switch (-CZ2)

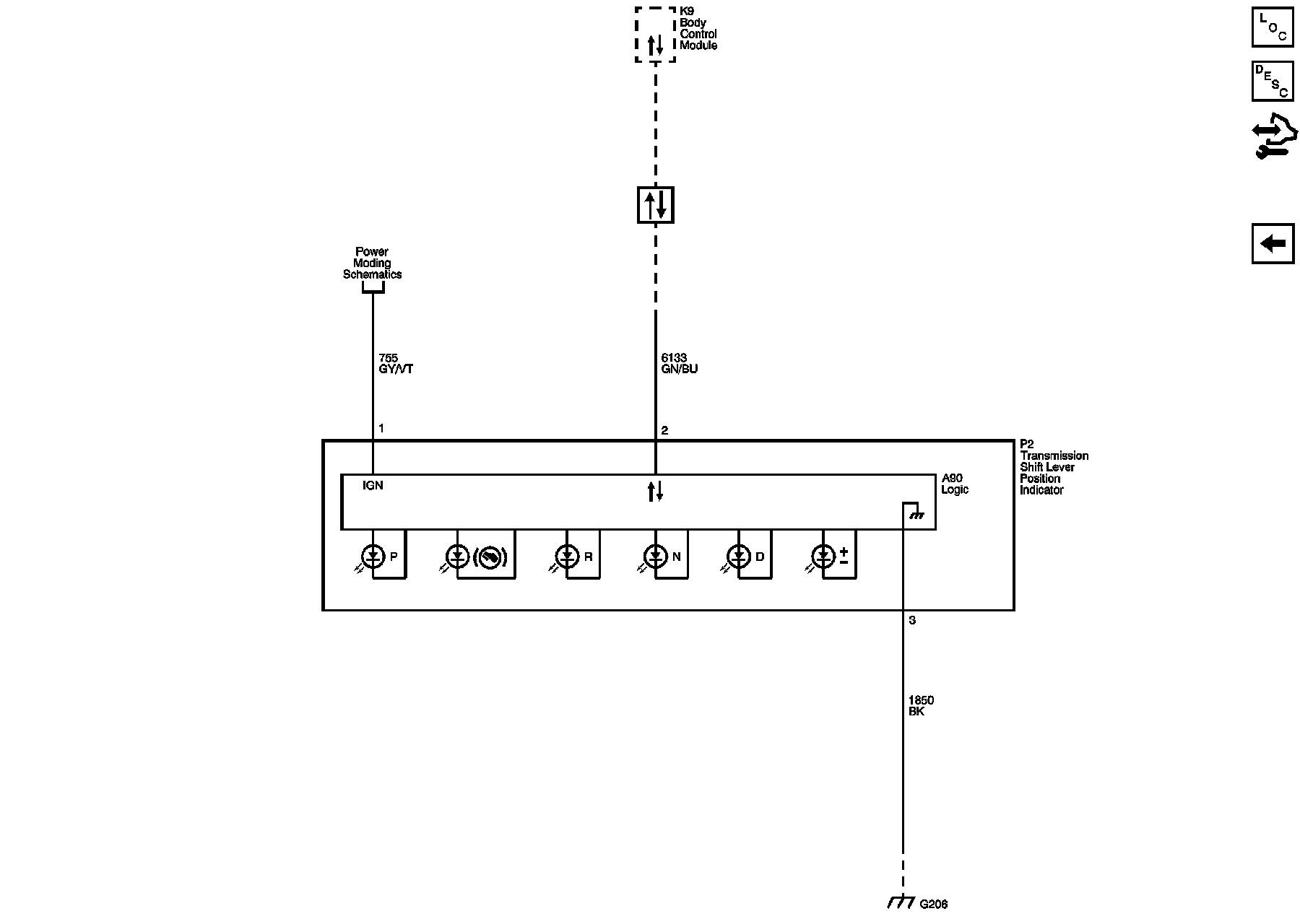

Shift Lever Position Indicator (-CZ2)

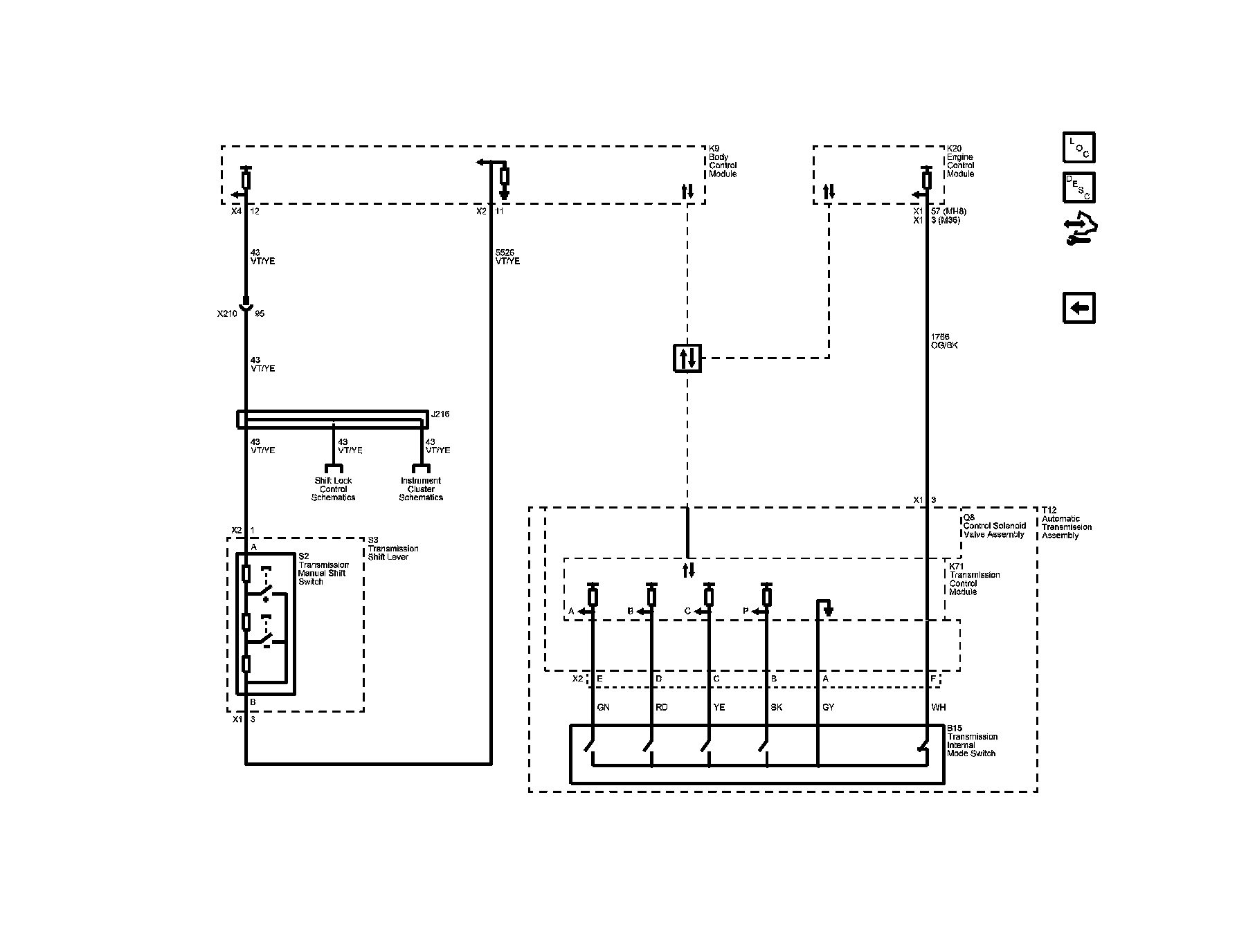

Internal Mode and Tap Up/Tap Down Switches (MHH or MHK/CZ2)
