Passenger Seat Schematics





Passenger Seat Schematics

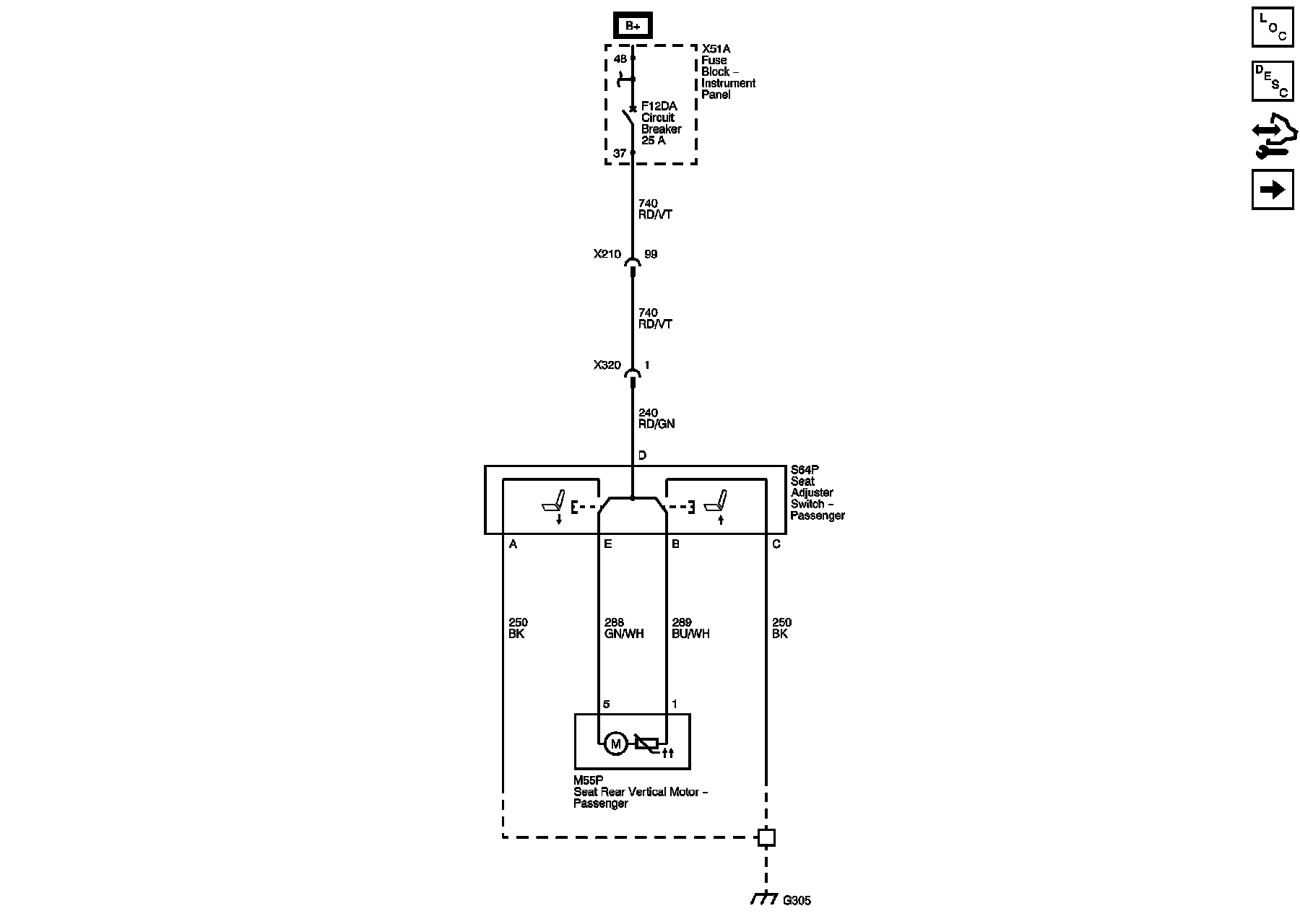

2-Way Adjustable Seat (-CZ2)





Seat Adjuster Switch and Position Motor (except A45)

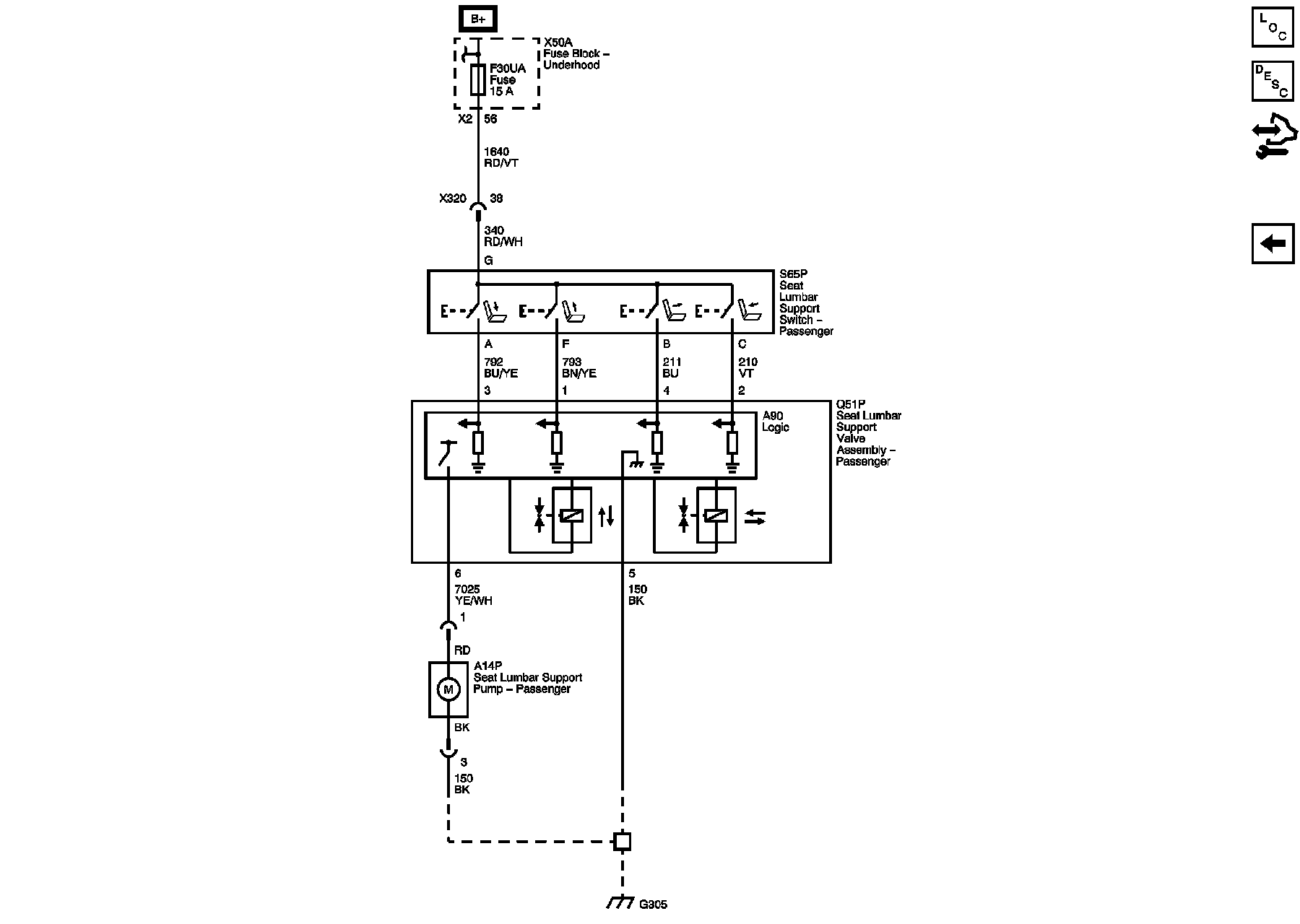

Lumbar Support System (APH)
