Home
>>
Buick
>>
2013
>>
Regal L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>

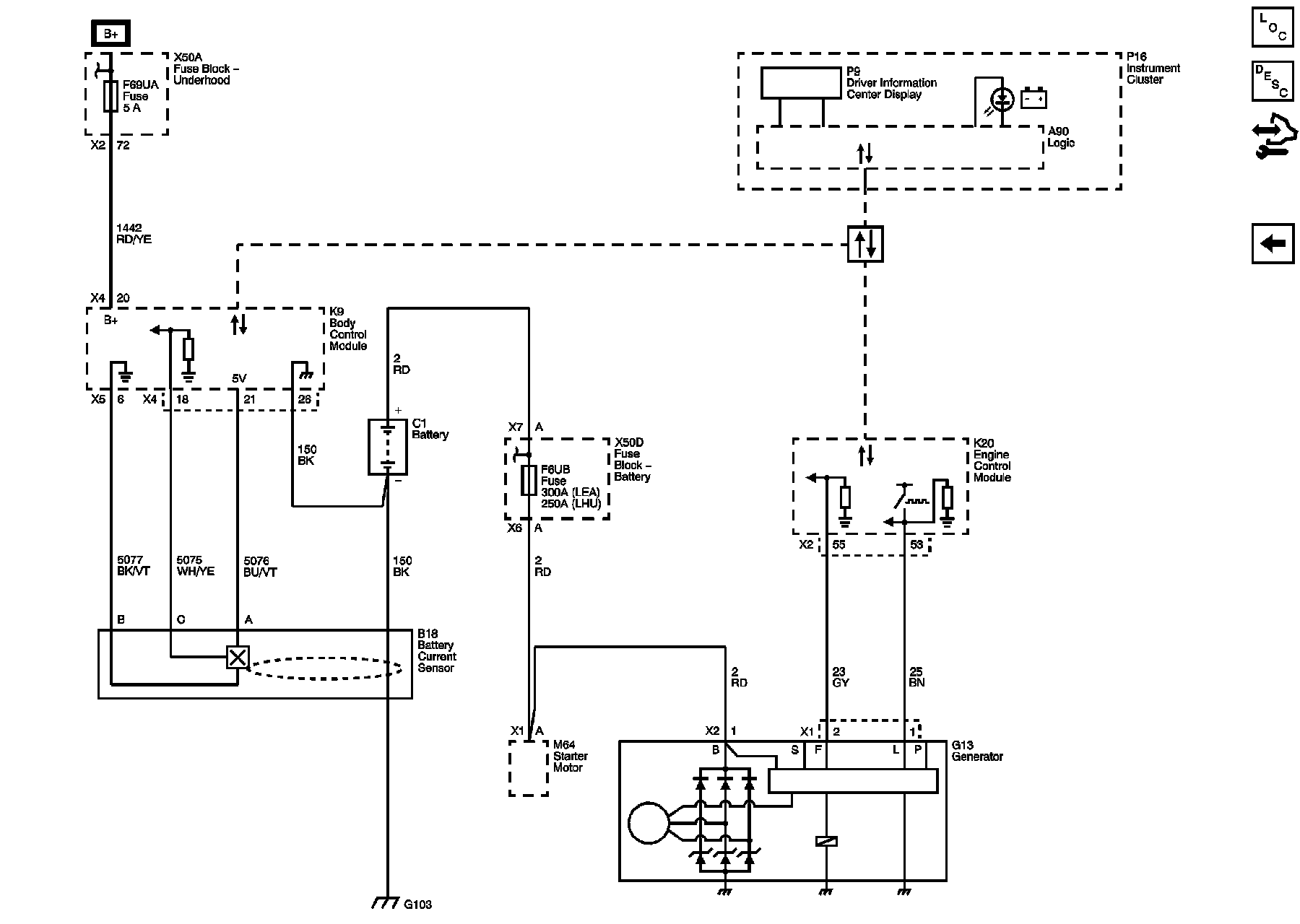

System Diagram
System Diagram
Starting and Charging
Schematics
Starting (-CZ2)
Charging (-CZ2)
Starting (CZ2)
Charging (CZ2)
