Instrument Cluster Schematics

Instrument Cluster Schematics

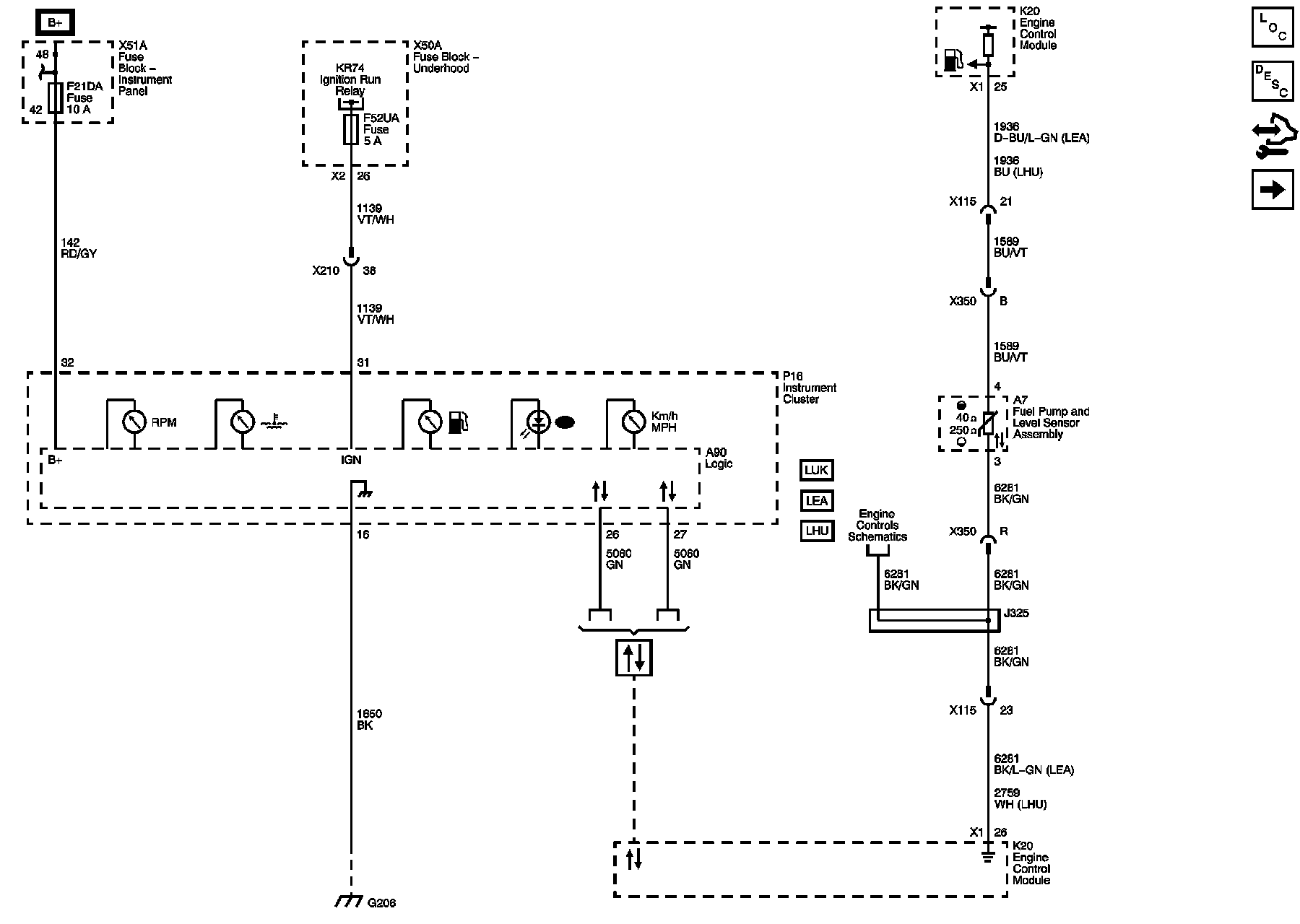

Gauges (-CZ2)

Gauges (CZ2)

Indicators

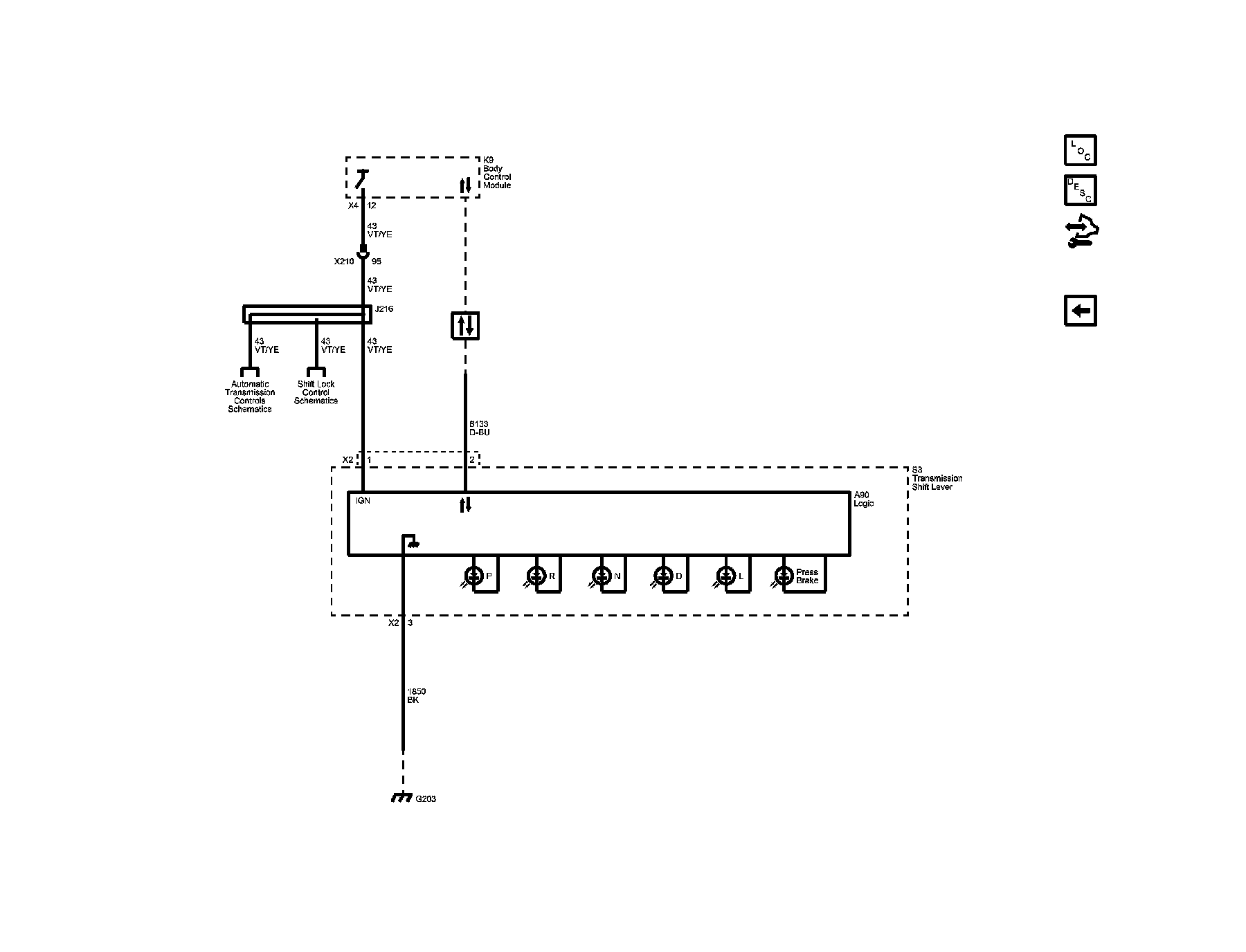

Automatic Transmission Shift Lever Assembly (CZ2)
